GW20576

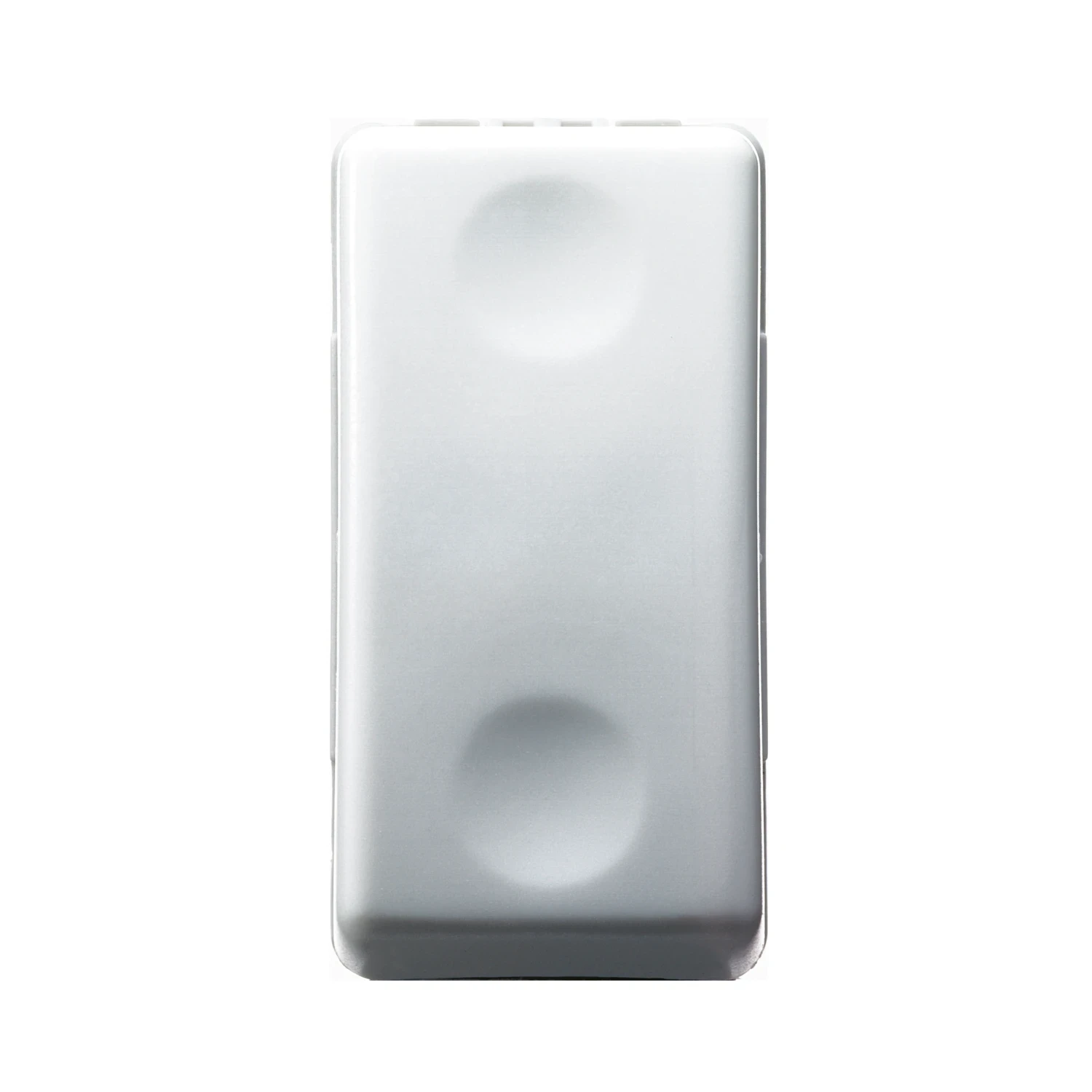

Photo is representative

Gewiss System White 1P Switch Button 16AX 250V AC Domestic Module

Product Information

Stock Code GW20576
GTIN 8011564132955
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €4.32

Gross price

€5.32

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 9 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

1P 16AX switch button module from the Gewiss System White domestic range. Fits flush-mount or surface-mount installations, part of the SYSTEM modular range with interchangeable devices and plates.

  • Voltage: 250 V AC
  • Rated power (230V LED lamps): 200 W
  • Terminal capacity stranded: min 0.75 - max 2x4 mm²
  • Terminal capacity solid: min 0.5 - max 2x2.5 mm²
  • Material: Technopolymer
Specifications

Voltage

250 V AC

Rated Power (230V LED Lamps)

200 W

Signalling Standard

EN 60669-1

Resistance at Test Voltage

2000 V at 50 Hz for 1 minute

Insulation Resistance

> 5 MOhm

Prolonged Operation

40,000 position changes at In 250 V ac cosφ=0.6

Glow Wire Test

850 °C

Thermo-pressure with Ball

125 °C

Terminal Grip on Cable Traction

> 50 N

Terminal Capacity Stranded Cables

min. 0.75 - max. 2x4 mm²

Terminal Capacity Solid Cables

min. 0.5 - max. 2x2.5 mm²

Wiring Terminals

With screw

Material

Technopolymer

Dimensions (W x H x D)

39.3 mm x 26.1 mm x 23 mm

Documents

datasheet GW20576
