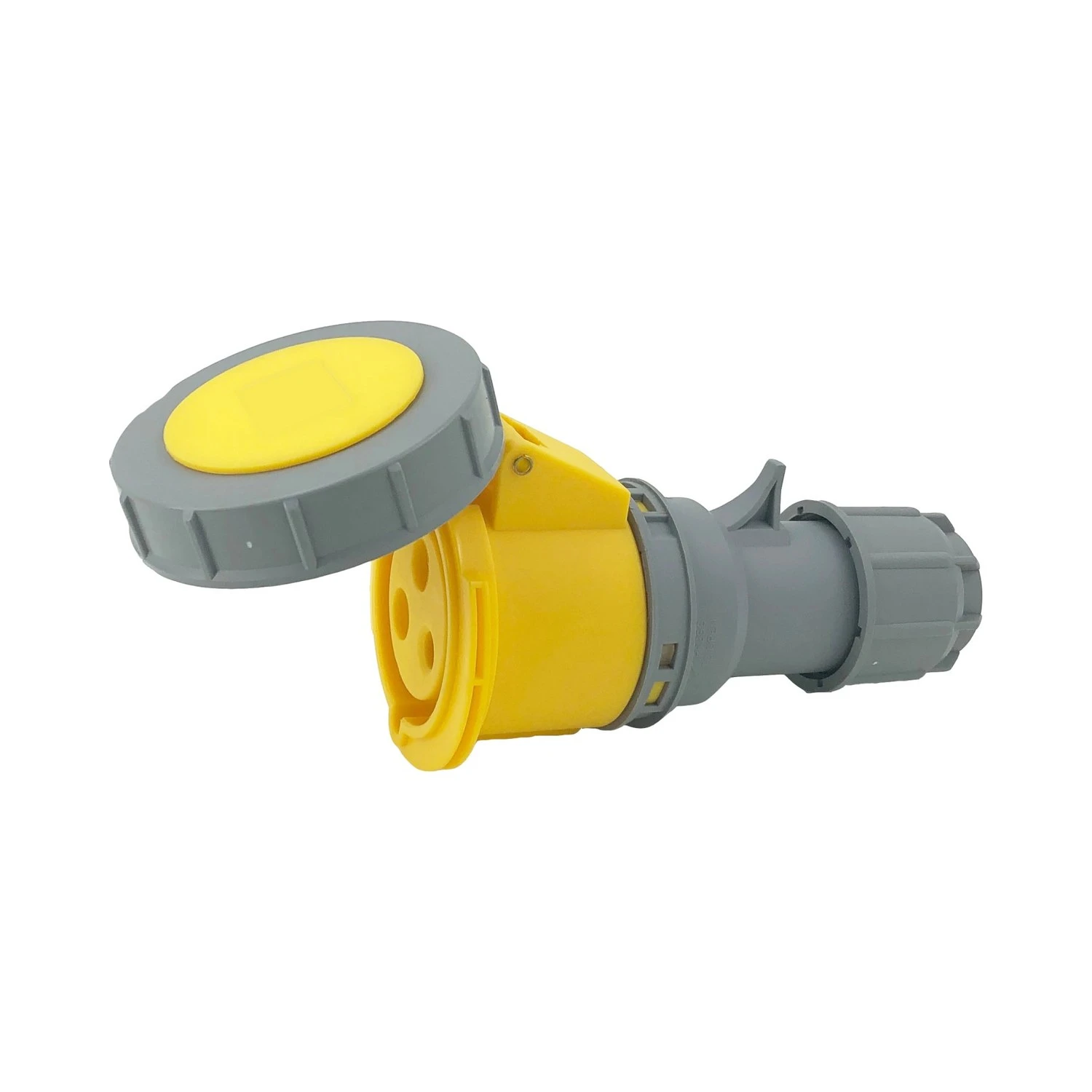

Gewiss Straight Connector 32A 2P+E 110V IP66/IP67/IP68/IP69 Yellow GW62034H
Product Information
priced individually
Net price: €34.74
Gross price
€42.73
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
The Gewiss GW62034H is a cable-mounted straight connector (socket) from the IEC 309 HP range, rated 32A, 2P+E at 100-130V 50/60Hz. It is yellow with the earth contact at the 4h position, the standard keying for 110V site power. The connector is rated IP66, IP67, IP68 and IP69, with IK09 mechanical resistance. Wiring is by screw terminals taking 2.5-6 mm² flexible or 2.5-10 mm² rigid conductors, and the cable clamp grips 9.2-19.9 mm cable. Contacts are nickel-plated and the housing is halogen-free to EN 60754-2. The range complies with IEC 60309-1 and IEC 60309-2. Breaking capacity at 1.1 Un is 40A, permissible overload is 42A, it is rated for more than 2000 operations and works from -25°C to +55°C.
