GW20519

Photo is representative

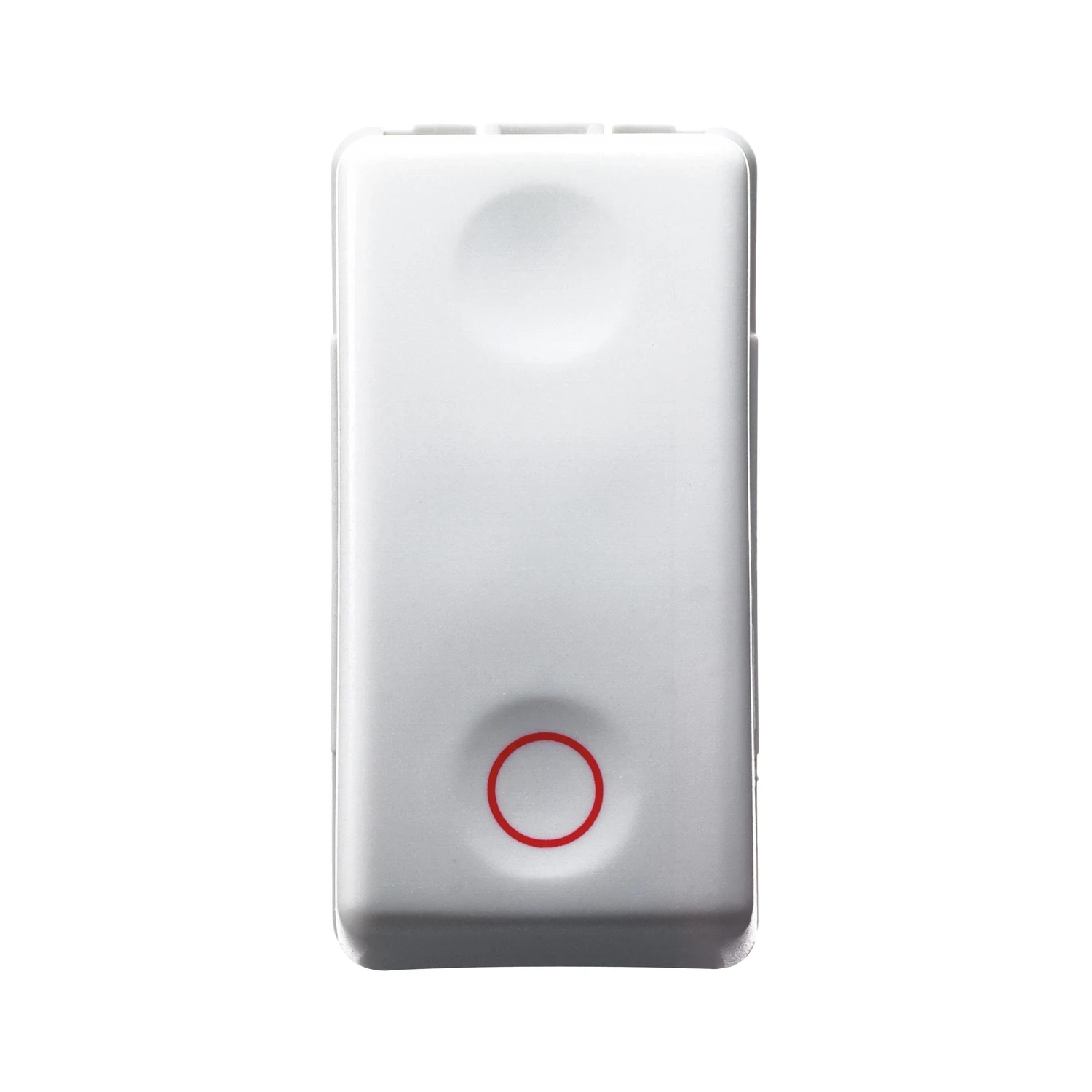

Gewiss System White Retractive Push-Button Switch 10A 1P NC 250V

Product Information

Stock Code GW20519
GTIN 8011564406957
Stock status: Available for delivery

priced individually

Net price: €4.91

Gross price

€6.04

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 9 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

GEWISS System White retractive push-button switch mechanism. Single-pole normally closed (1P NC) button for domestic installations, part of the modular System White range.

Used for control and comfort functions in residential wiring. Takes up one SYSTEM module and fits standard System White plates and frames.

  • Rating: 10A, 250V ac
  • Standard: EN 60669-1
  • Terminals: screw type, up to 2x4mm² stranded / 2x2.5mm² solid
  • Material: technopolymer, glossy white finish
  • Dimensions: 23 x 26.1 x 39.3 mm
Specifications

Voltage

250 V ac

Current Rating

10 A

Poles

1P NC

Standard

EN 60669-1

Insulation Resistance

> 5 MOhm

Test Voltage

2000 V at 50 Hz for 1 minute

Terminal Type

Screw

Mechanical Life

40,000 operations at 250 V ac cosφ=0.6

Thermo-pressure with Ball

125 °C

Glow Wire Test

850 °C

Cable Range Stranded

min. 0.75 - max. 2x4 mm²

Cable Range Solid

min. 0.5 - max. 2x2.5 mm²

Material

Technopolymer

Dimensions

23 x 26.1 x 39.3 mm

Documents

datasheet GW20519
