GW44426

Photo is representative

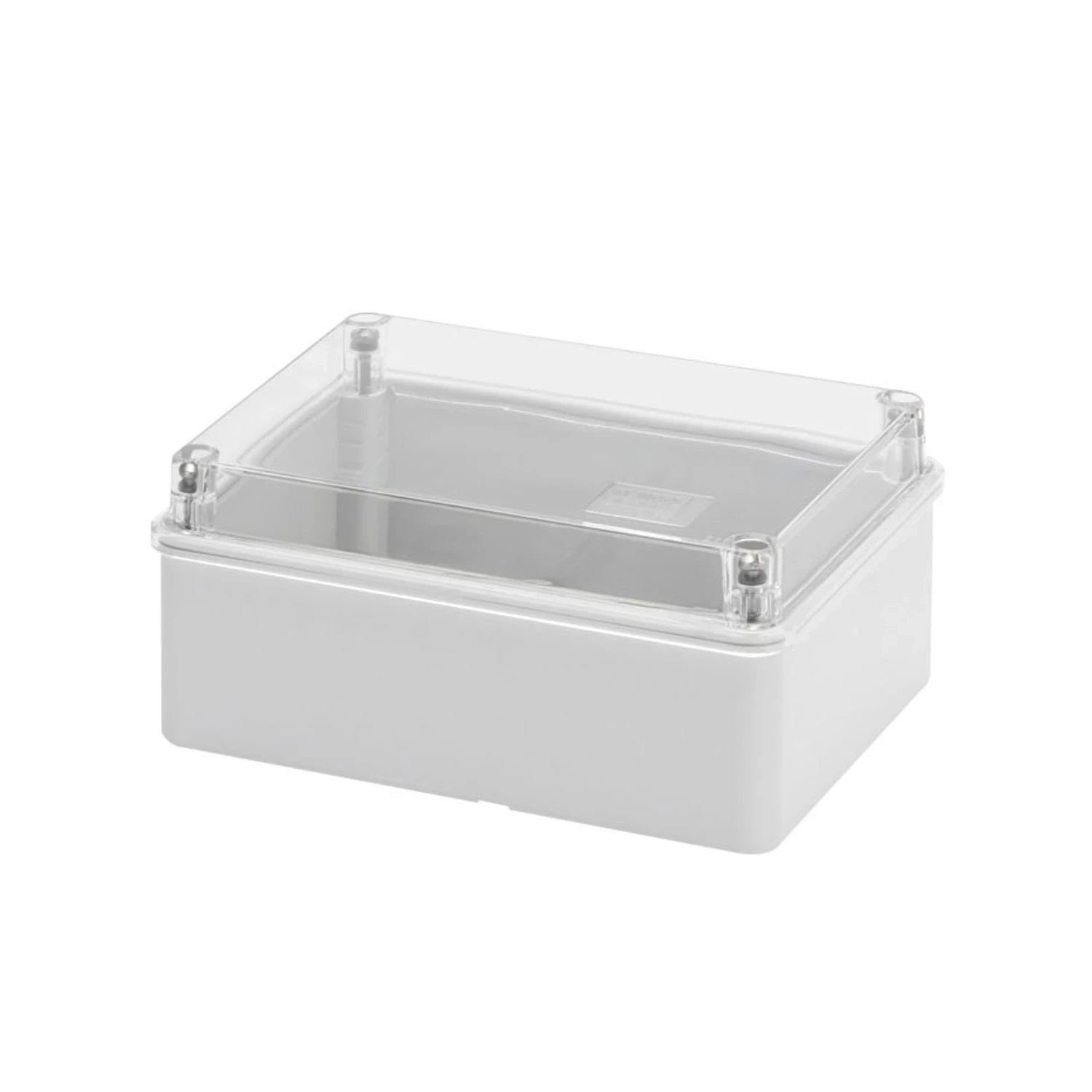

Gewiss Junction Box 150x110x70mm IP56 IK08 Grey

Product Information

Stock Code GW44426
GTIN 8011564014091
Stock status: 6 available for delivery

priced individually

Net price: €28.23

Gross price

€34.72

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Surface-mounting watertight junction box from Gewiss’s 44 CE range. Built for ordinary and special-use junctions, including industrial applications where dust and water ingress protection is needed.

Made from halogen-free GWPLAST 120 technopolymer with a low screwed transparent lid, secured by 4 stainless steel screws.

  • IP56 / IK08
  • Internal dimensions 150x110x70mm
  • Max hole diameter 29mm
  • Operating temp -25°C to +60°C
  • Glow wire tested to 650°C
Specifications

IP Rating

IP56

Impact Resistance (IK)

IK08

Insulation Class

II (IEC 61140)

Colour

Grey RAL 7035

Material

Technopolymer GWPLAST 120 (Halogen-free)

Internal Dimensions

150x110x70 mm

Max Hole Diameter

29 mm

Lid Screws

4, Stainless Steel

Lid Colour

Transparent

Lid Type

Low Screwed

Operating Temperature Range

-25 to +60 °C

Glow Wire Test

650 °C

Thermo-pressure with Ball

110 °C

Compliance

CE, UKCA, EN 60670-1, IEC 60670-22

Documents

datasheet GW44426

Gewiss Industrial Plugs & Enclosures
