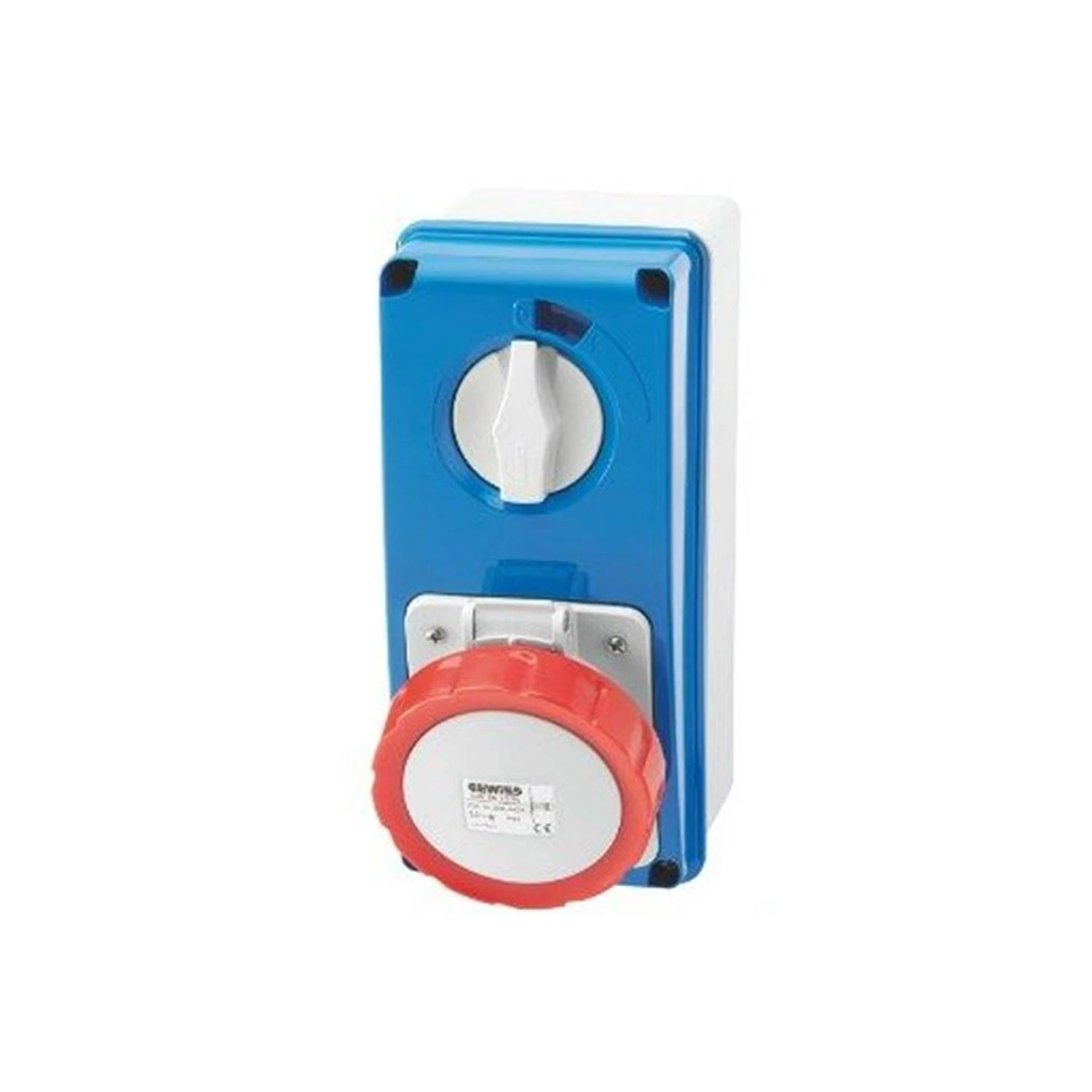

Gewiss GW66209N Interlocked Socket 3P+N+E 16A 400V IP67
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: €61.99
Gross price
€76.24
Mon‐Fri · Subject to order volume Free delivery available 28 day returns
The Gewiss GW66209N is a vertical interlocked switched socket-outlet from the IB range, conforming to the IEC 60309 industrial connector standard. It combines a 3P+N+E socket-outlet rated 16A at 380–415V (6h clock position, red) with an integral switch and a mechanical interlock: the plug can only be inserted or withdrawn with the switch off, and the switch can only close with the plug inserted. This version is unfused, with no fuse-holder base. Rated IP67, it carries an IK08 impact rating, a glow-wire rating of 850°C and operates from −25°C to +40°C. It measures 220×103×151mm and can be surface-mounted. Suitable for industrial socket points requiring safe, switched connection and disconnection under load conditions.
