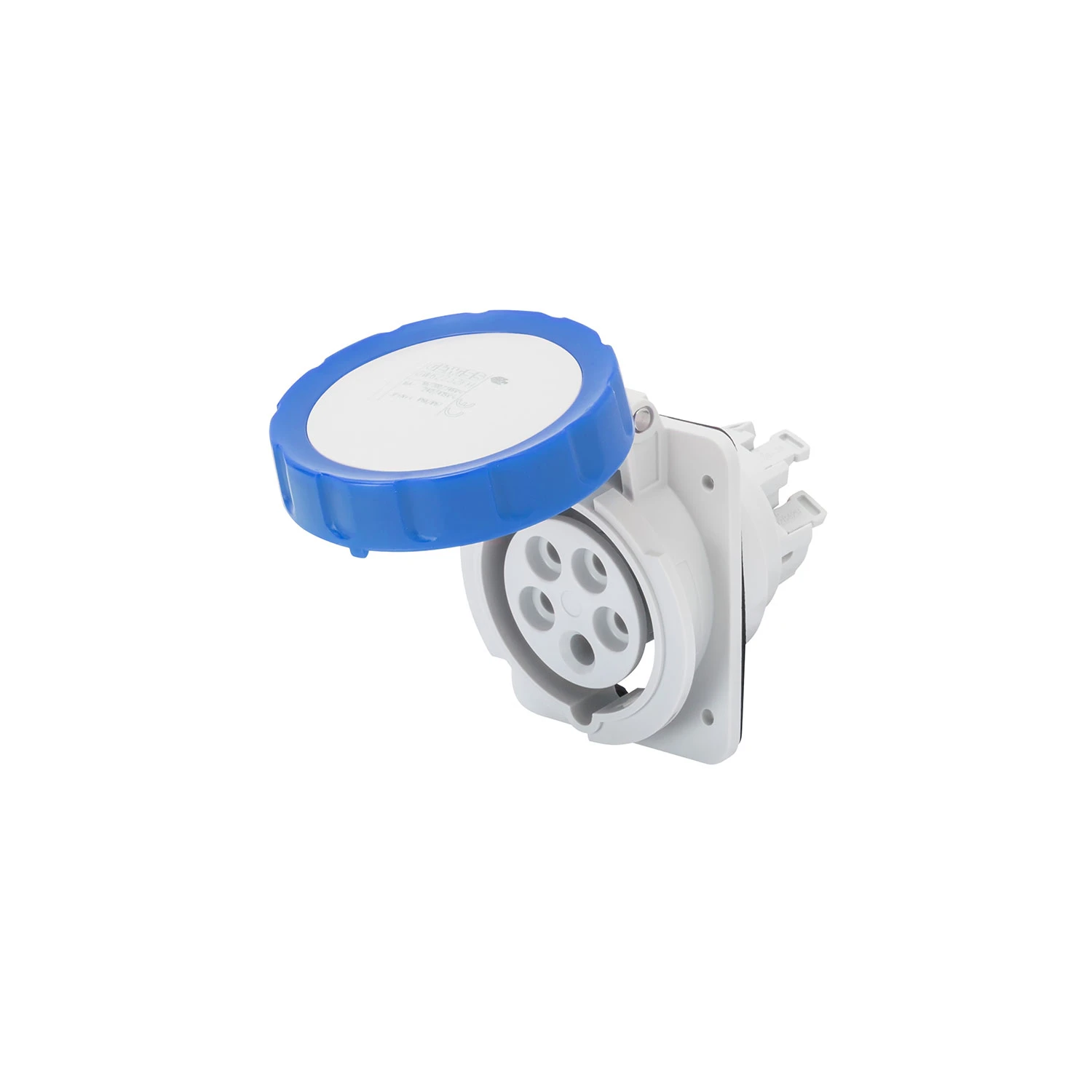

Gewiss GW62238FH Panel Socket 2P+E 32A 230V IP67 Angled
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: €17.07
Gross price
€20.99
Mon‐Fri · Subject to order volume Free delivery available 28 day returns
The Gewiss GW62238FH is a 10° angled, flush (panel) mounting socket-outlet from the IEC 309 HP range, conforming to the IEC 60309 industrial connector standard. It has a 2P+E (three-contact) configuration rated 32A at 200–250V, the standard single-phase band (6h clock position, blue). The socket uses quick spring-action terminals (the FH suffix) accepting 2.5–6mm² flexible or 2.5–10mm² rigid conductors. Rated IP66/IP67 with an IK09 impact rating, it is moulded in halogen-free technopolymer with stainless steel external parts and nickel-plated contacts, and operates from −25°C to +55°C. The flange measures 95×80mm with a Ø68mm panel cut-out. Conforms to IEC/EN 60309-1 and 60309-2 with CE and ENEC certification.
