GW44218

Photo is representative

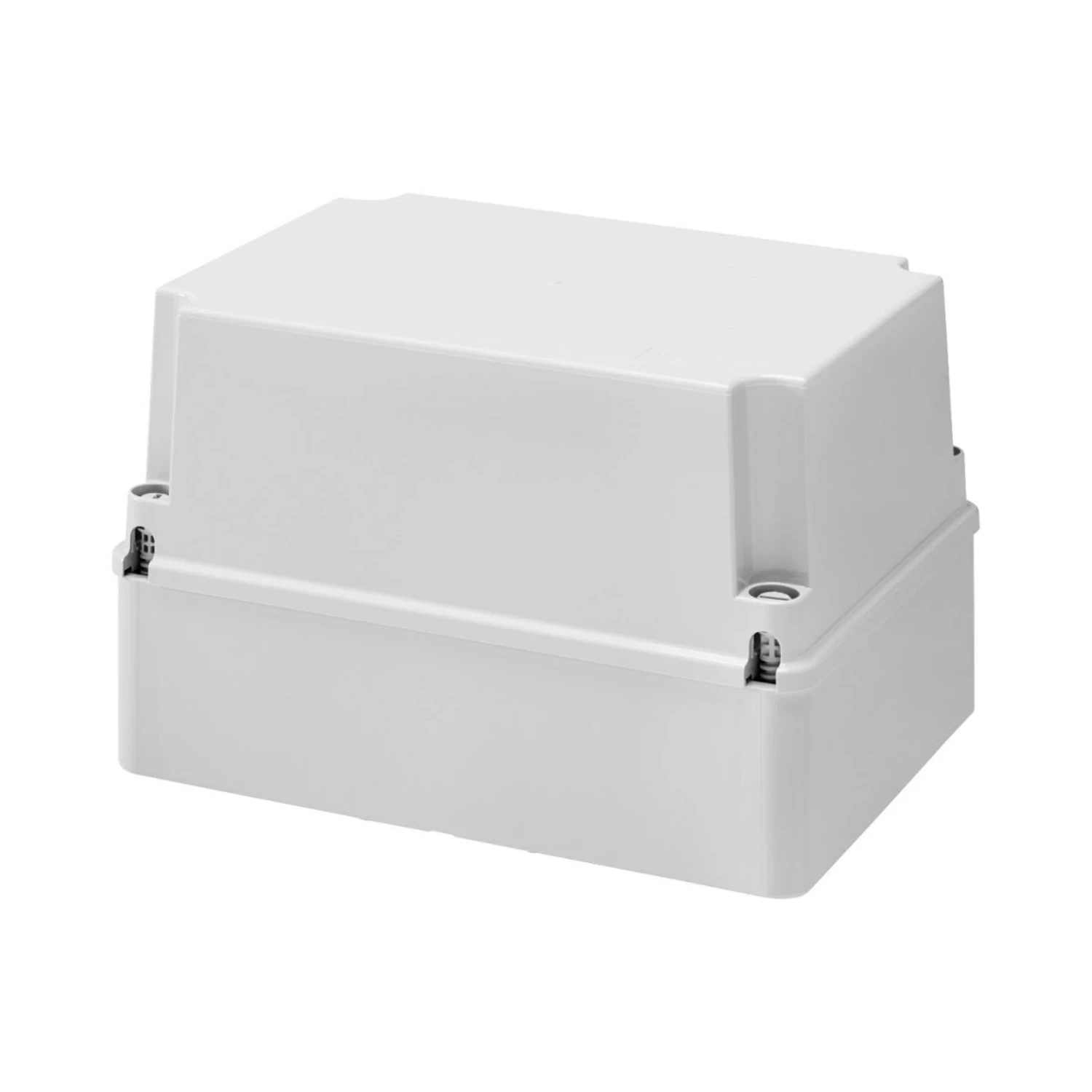

Gewiss GW44218 Surface Mounting Junction Box 240x190x160mm IP56 IK08

Product Information

Stock Code GW44218
GTIN 8011564013896
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €26.05

Gross price

€32.04

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Surface-mounting watertight junction box from Gewiss, built for ordinary junctions, special uses and industrial applications. Halogen-free technopolymer body with smooth walls and a deep screwed cover.

  • IP56 rated, IK08 impact resistance
  • Internal dimensions 240 x 190 x 160mm
  • Max hole diameter 37mm
  • Operating temperature -25°C to +60°C
  • Deep screwed lid with 4 insulated sealable hinged screws
Specifications

Insulation Class

II (IEC 61140)

IP Degree

IP56

IK Mechanical Resistance

IK08

Material

Technopolymer GWPLAST 75

Colour

Grey RAL 7035

Internal Dimensions

240 x 190 x 160 mm

Maximum Hole Diameter

37 mm

Lid Type

Deep screwed

Lid Screws

4 insul. sealable hinged

Glow Wire Test

650 °C

Thermo-Pressure with Ball

85 °C

Operating Temperature Range

-25 to +60 °C

Torque Screws Tightening

1.8 NM

Compliance

EN 60670-1 (CEI 23-48), IEC 60670-22 (CEI 23-94)

Documents

datasheet GW44218

Gewiss Industrial Plugs & Enclosures
