GW44204

Photo is representative

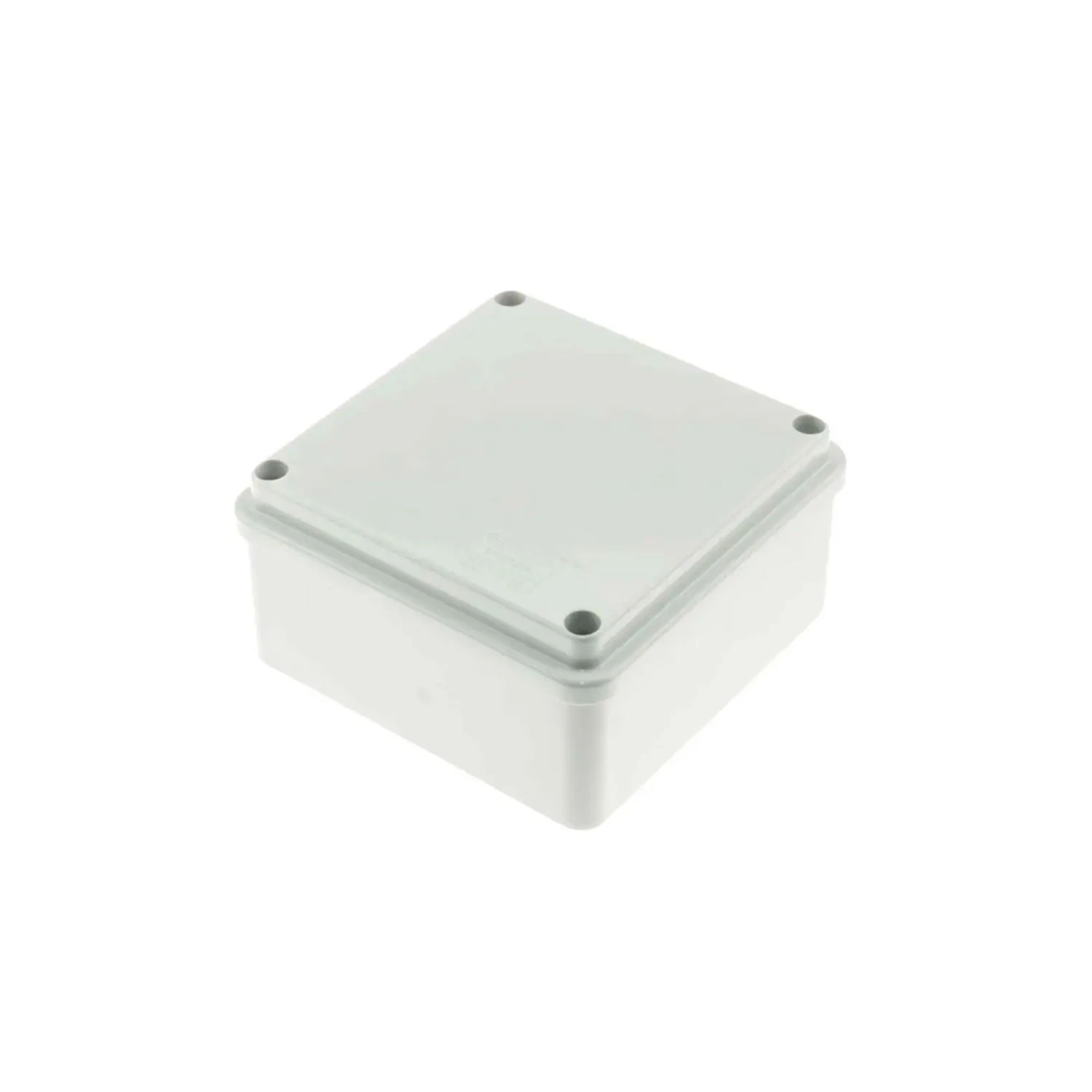

Gewiss GW44204 IP56 Junction Box 100×100×50mm (Range 44 CE)

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GW44204
GTIN
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €3.78

Gross price

€4.64

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 28 day returns

The Gewiss GW44204 is a surface-mounting watertight junction box from the Range 44 CE, with internal dimensions of 100×100×50mm and external dimensions of 109×109×58mm. Moulded in self-extinguishing, halogen-free GWPLAST 75 technopolymer in grey RAL 7035, it is rated IP56 to IEC 60529 for use in damp and dusty environments. The walls are smooth, allowing cable entries to be drilled on site up to Ø29mm, and the plain lid is secured with four stainless steel screws. The box carries an IK08 impact rating, a glow-wire rating of 650°C and Class II insulation, and operates from −25°C to +60°C. It conforms to EN 60670-1 and IEC 60670-22, and carries CE and UKCA marking.

Specifications

Brand

Gewiss

Range

44 CE (technopolymer watertight)

Type

Surface-mounting junction box

Internal dimensions

100 × 100 × 50 mm

External dimensions

109 × 109 × 58 mm

IP rating

IP56 (IEC 60529)

Material

Halogen-free technopolymer (GWPLAST 75)

Colour

Grey RAL 7035

Cable entries

Smooth walls; drill on site, max Ø29 mm

Cover

Plain lid, 4 stainless steel screws

Impact rating

IK08

Glow-wire

650 °C

Operating temperature

−25 °C to +60 °C

Standards

EN 60670-1, IEC 60670-22, CE, UKCA
