GW44117

Photo is representative

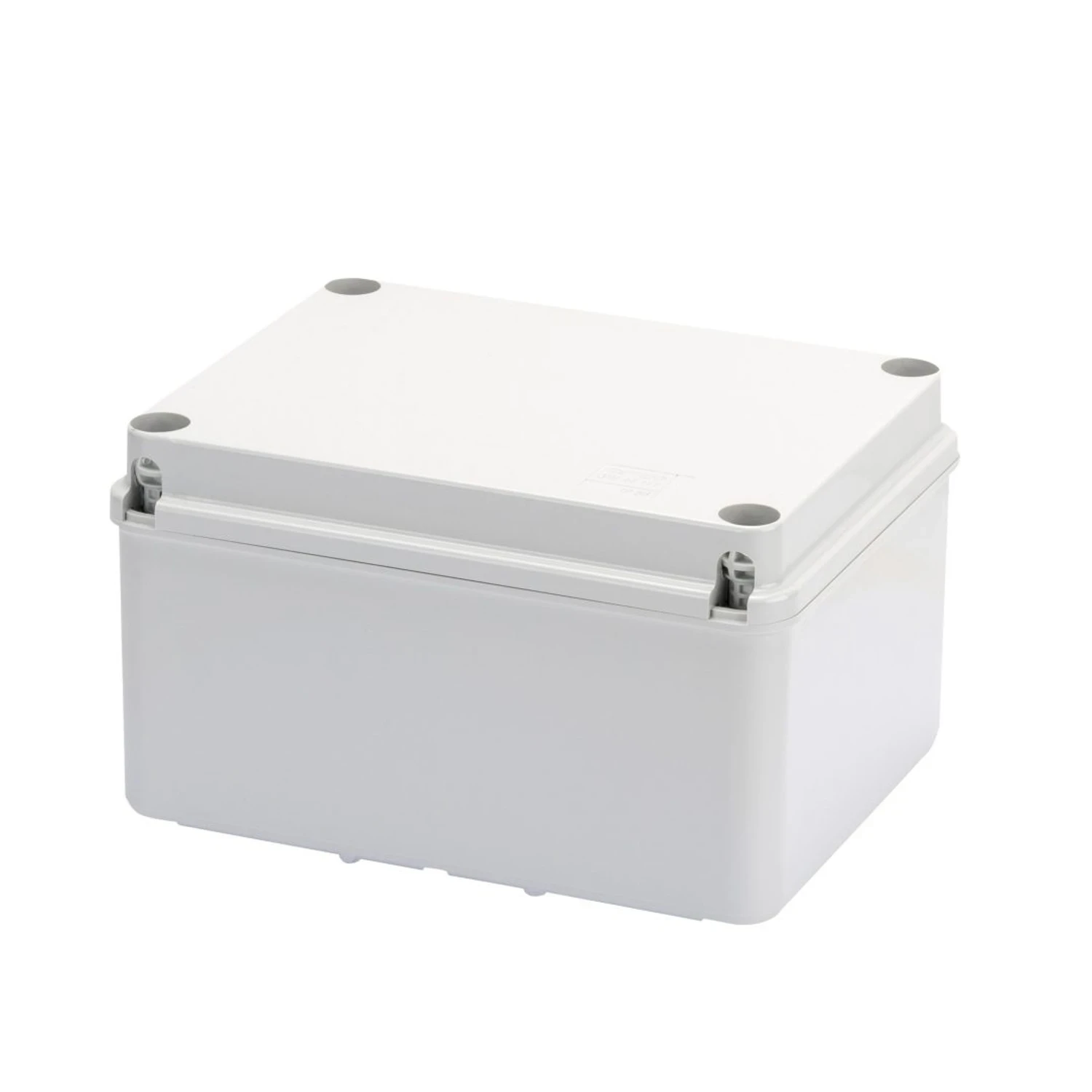

Gewiss Watertight Junction Box 190x140x110mm IP56

Product Information

Stock Code GW44117
GTIN 8011564763487
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €17.54

Gross price

€21.58

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Surface-mounting junction box for ordinary cable joints in industrial and special-use applications. Technopolymer GWPLAST 75 body in grey RAL 7035, built for sealed, watertight terminations.

  • IP56 rated, IK08 impact resistance
  • Internal dimensions 190x140x110mm, effective bottom height 83mm
  • Low screwed lid with 4 insulated sealable hinged screws
  • Halogen-free material to EN 60754-2
  • Operating temperature -25°C to +60°C
Specifications

IP Rating

IP56

Mechanical Resistance

IK08

Insulation Class

II (IEC 61140)

Internal Dimensions

190x140x110 mm

Effective Height of Bottom

83 mm

Maximum Hole Diameter

54 mm

Lid Type

Low screwed

Lid Screws

4 insulated sealable hinged

Torque Screw Tightening

1.8 NM

Glow Wire Test

650 °C

Operating Temperature

-25 to +60 °C

Thermo-Pressure with Ball

85 °C

Material

Technopolymer GWPLAST 75, halogen-free (EN 60754-2)

Colour

Grey RAL 7035

Documents

datasheet GW44117

Gewiss Industrial Plugs & Enclosures
