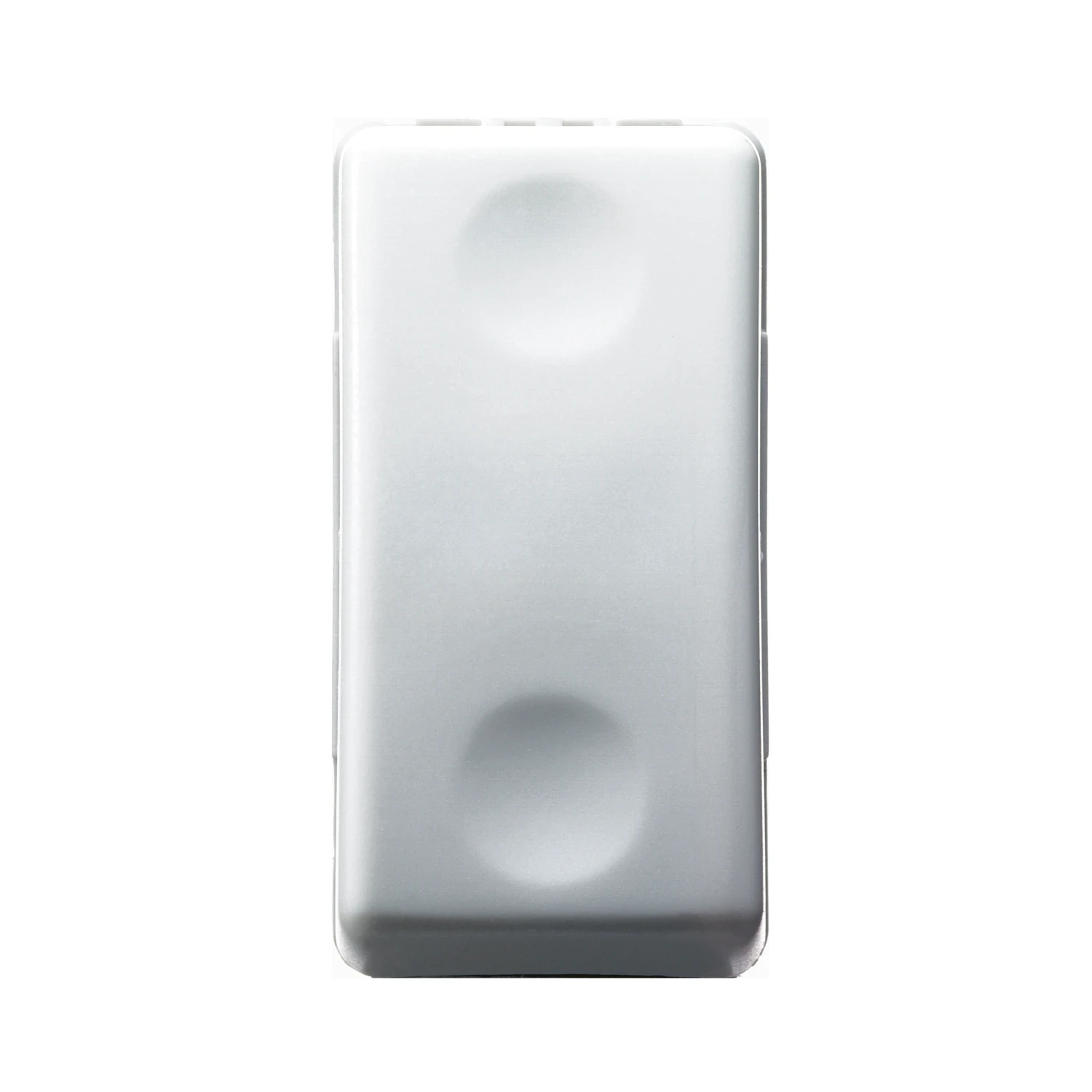

Gewiss System White Modular Push-Button Switch 10A 1P NO 250V AC

Product Information

Stock Code GW20510
GTIN —
Stock status: Available for delivery

priced individually

Net price: €4.88

Gross price

€6.00

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

GEWISS System White push-button switch, modular design for wall-mounted control panels. Screw terminal wiring, 1P NO contact rated at 10A / 250V AC.

  • Function: 1P NO, 10A
  • Voltage: 250V AC
  • Terminals: screw type, up to 2x4mm² stranded / 2x2.5mm² solid
  • Material: technopolymer
  • Standard: EN 60669-1
Specifications

Function

1P NO - 10 A

Voltage

250 V ac

Standard

EN 60669-1

Insulation Resistance

> 5 MOhm

Terminal Tightening Capacity Stranded Cables

min. 0.75 - max. 2x4 mm²

Terminal Tightening Capacity Solid Cables

min. 0.5 - max. 2x2.5 mm²

Terminal Grip on Cable Traction

> 50 N

Prolonged Operation Switch

40,000 at In 250 V ac cosφ=0.6

Thermo-pressure with Ball

125 °C

Glow Wire Test

850 °C

Material

Technopolymer

Dimensions

39.3 x 26.1 x 45.4 mm (W x D x H)

Documents

datasheet GW20510
