Photo is representative
Gewiss 90° Angled Surface Appliance Inlet 125A 3P+N+E 380-415V Red IP67
Product Information
Stock Code
GW60461
GTIN
8011564010833
Stock status: Out of stock
priced individually
More arriving soon
Net price: €149.88
Gross price
€184.36

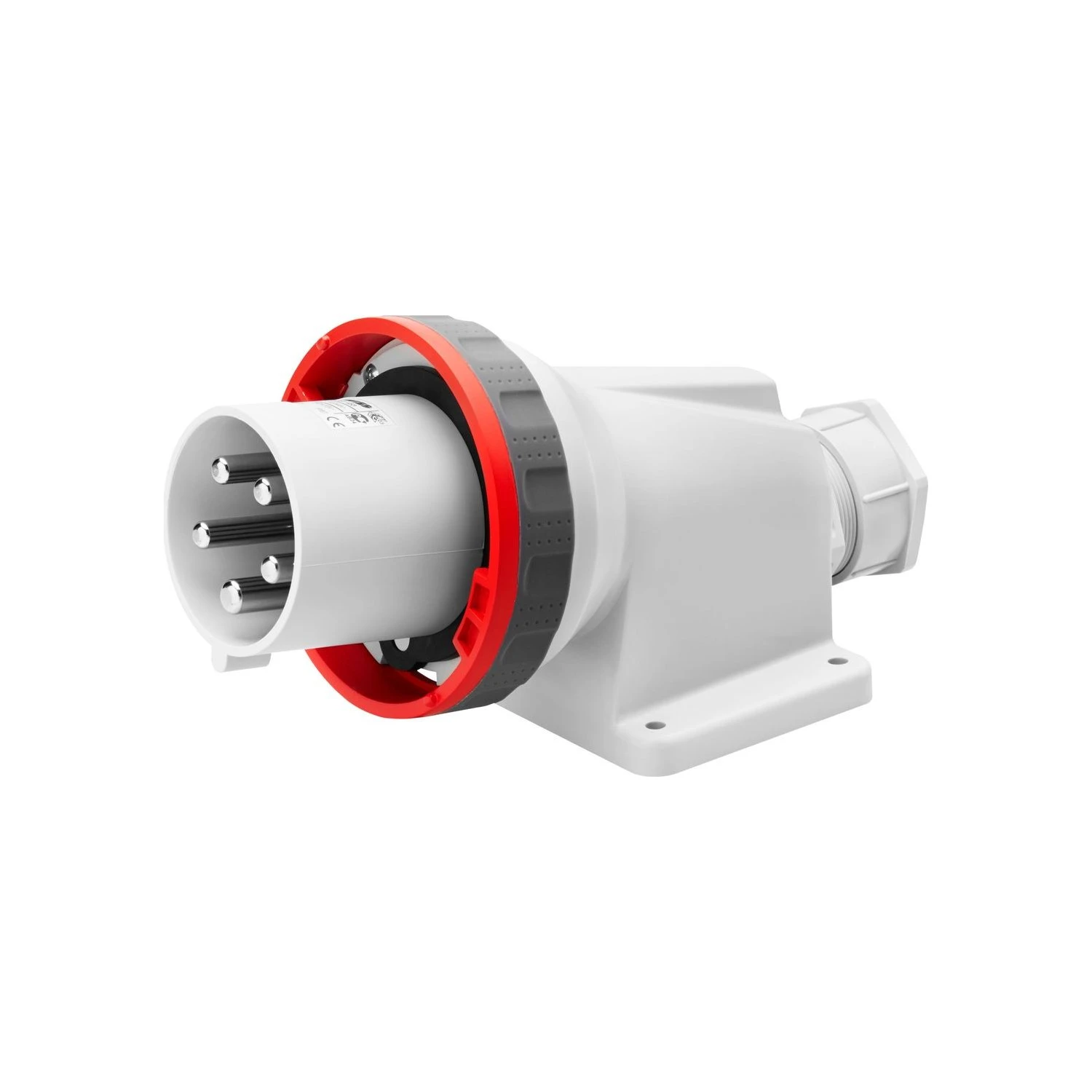

Gewiss GW60461 is a 125A 3P+N+E appliance inlet from the IEC 309 HP range, in a 90° angled surface-mounting body.
- Rating: 125A, 380-415V, 50/60Hz, red, 6h earth position
- Protection: IP67, IK08
- Pilot contact: yes
- Terminals: mantle type, 16-50mm² flexible / 25-70mm² rigid
- Cable entry: Pg48
- Contacts: solid brass (CuZn40Pb2)
- Operating temperature: -25 to +55°C
- Size: 280 x 150mm, base 140 x 140mm, fixing centres 120 x 120mm (Ø6.5mm holes)
- Standards: IEC 60309, EN 60309; CE, ENEC
Sold individually.
