GW27834

Photo is representative

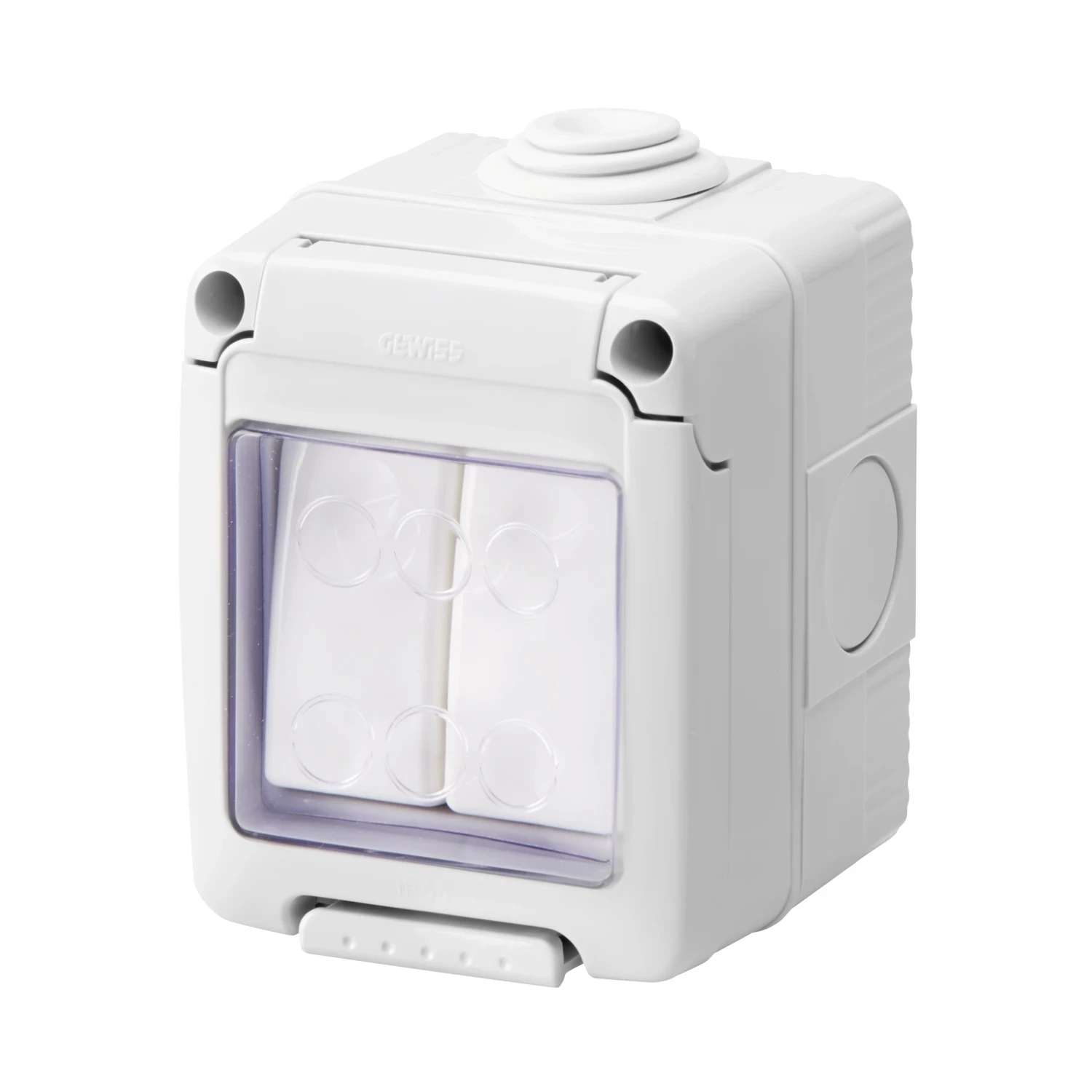

Gewiss 27 COMBI Series Watertight 2 Gang 2 Way Switch 1P 16AX IP55

Product Information

Stock Code GW27834
GTIN 8011564074613
Stock status: Available for delivery

priced individually

Net price: €17.33

Gross price

€21.31

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 7 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Gewiss 27 COMBI modular container switch, 2 gang, two-way, 1P 16AX. Part of the 27 COMBI range with a transparent membrane door and grey RAL 7035 housing. IP55 rated, recommended for outdoor installations subject to extreme atmospheric conditions.

  • 250V AC, 16AX two-way switch, 1P
  • IP55, insulation class II
  • Dimensions 66x82x65 mm
  • 3 x Ø23mm knockouts on sides, 1 on bottom, plus 1 cable gland entry
  • Installation temperature -25°C to +60°C
  • Compliant with EN 60669-1
Specifications

Voltage

250 V ac

Current Rating

16A (16AX)

Poles

1P

IP Rating

IP55

Insulation Class

II

Dimensions (LxHxD)

66x82x65 mm

Door Type

With membrane

Colour

Grey RAL 7035

Knockout Holes Ø23

3 on sides / 1 on the bottom

Cable Gland Holes Ø23

1

Glow Wire Test

650 °C

Thermo-pressure with Ball

70 °C

Installation Temperature

-25 to +60 °C

Standard

EN 60669-1

Documents

datasheet GW27834 datasheet
