Fandis Panel Filter Fan 230V IP54 92mm Cut-out 23m³/h FPF08KU230B-110
Product Information
priced individually
Net price: €67.22
Gross price
€82.68
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items

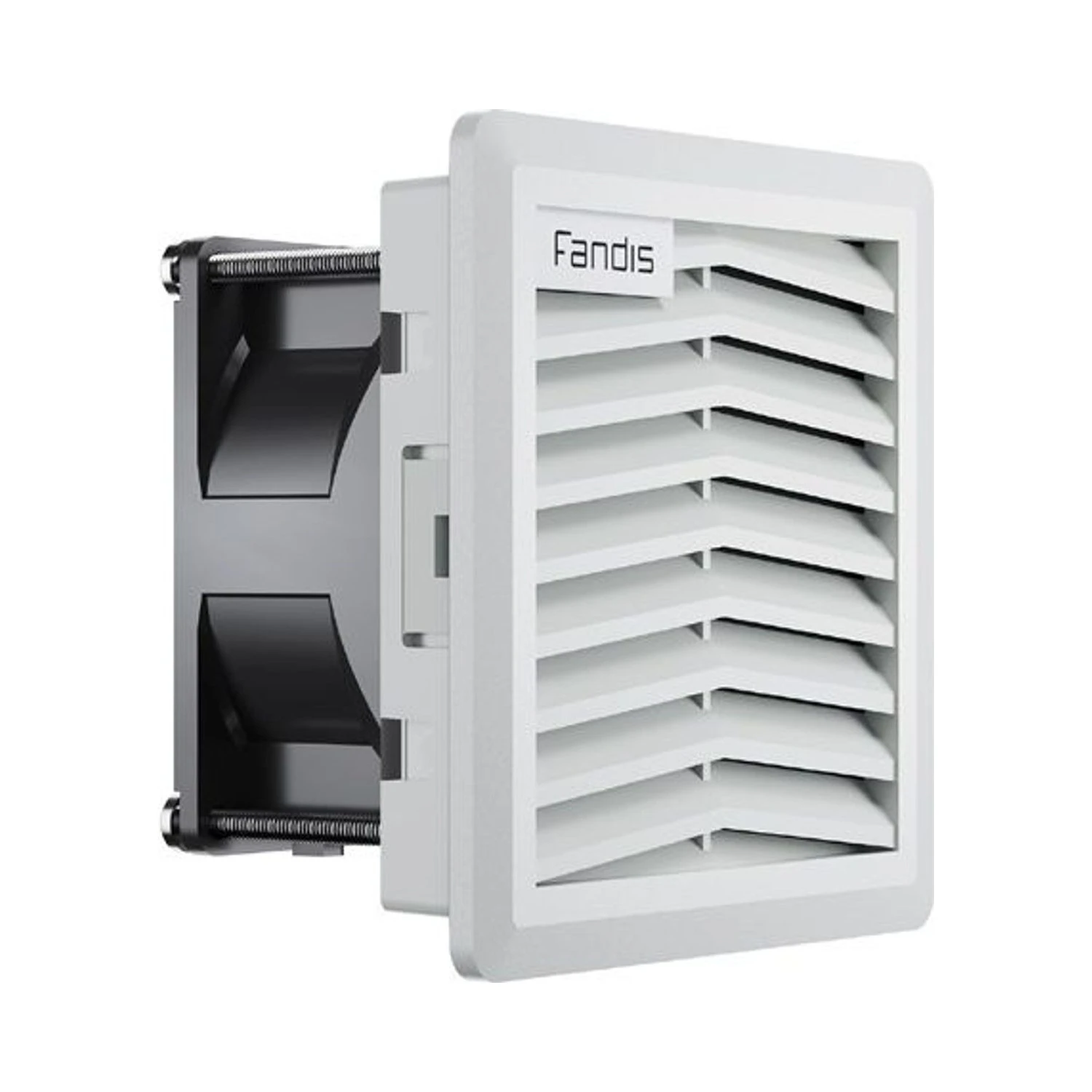

The Fandis FPF08KU230B-110 is a filter fan from the FPF series for ventilating electrical enclosures and control panels. It combines a ball-bearing fan with a 105 × 105 mm grey (RAL 7035) grille and a G3 synthetic-fibre filter mat, and is rated IP54.
The fan runs on 230 V AC at 50⁄60 Hz (operating range 207-253 V), drawing 0.07/0.055 A and 10⁄8 W. Maximum airflow is 23⁄30 m³/h with a maximum static pressure of 42⁄62 Pa, at a noise level of 33⁄38 dB(A).
It mounts in a 92 mm square cut-out (+1.5/-0 mm) in panel walls 1.5 to 2.2 mm thick, using snap-on fixing, and protrudes 57 mm behind the panel. Connection is by 300 mm flying leads. Operating temperature is -10 to +50 °C, rated life is 50,000 hours at 20 °C, and it carries CE, cURus and UKCA approvals.
