ESPBA2R

Photo is representative

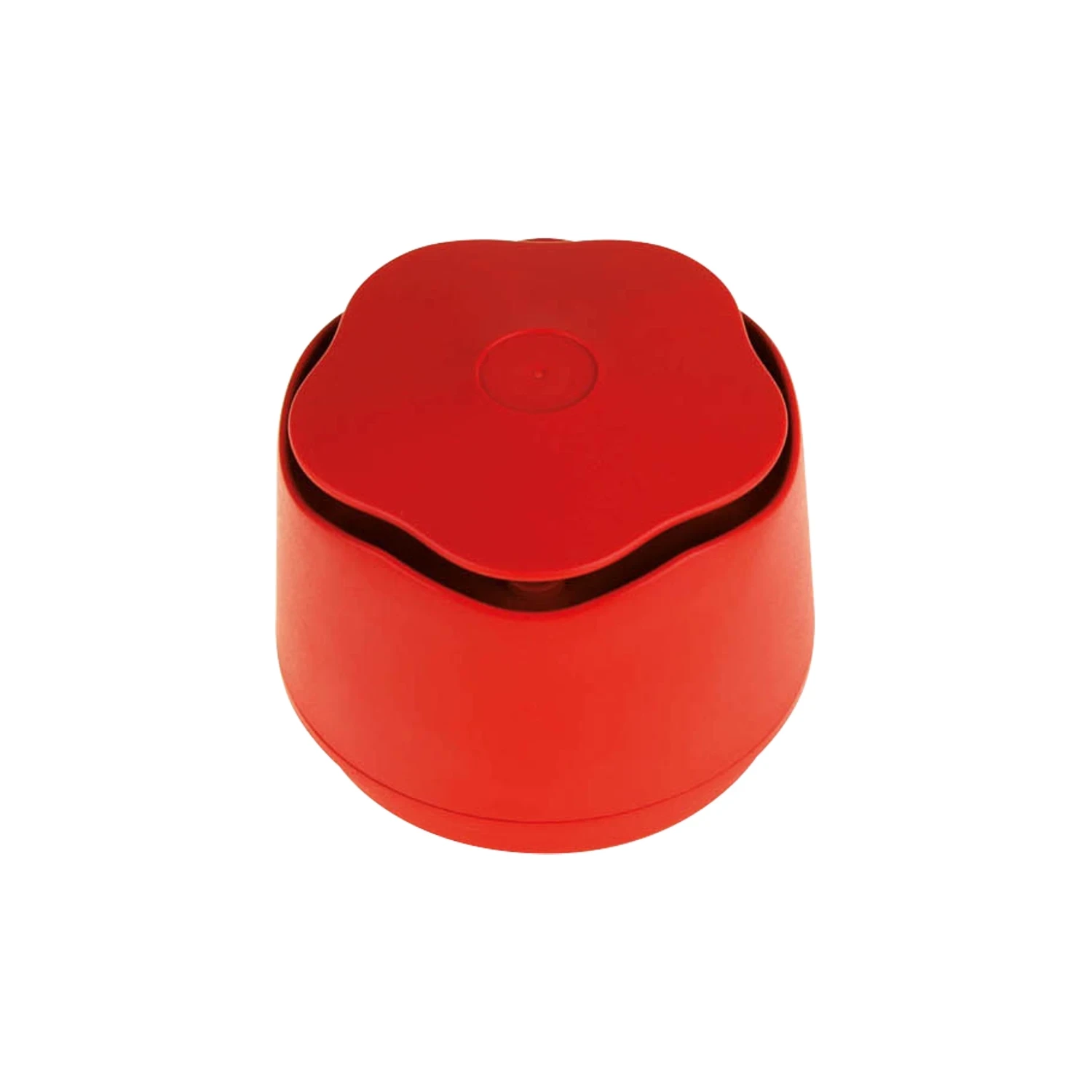

ESP Banshee BA-2R Fire Alarm Sounder 9-30VDC 110dB IP45 EN54-3

Product Information

Stock Code ESPBA2R
GTIN —
Stock status: Out of stock

priced individually

Net price: €45.26

Gross price

€55.67

Surface-mounted audible alarm sounder for fire alarm and conventional sounder circuits. IP45 rated, red flame retardant ABS housing.

Runs 32 selectable tones with 3 adjustable volume levels, giving flexibility across alarm zones and ambient noise conditions.

  • Operating Voltage: 9-30V DC
  • Sound Output @ 1m: 76-110 dB
  • Cable Size: 0.28-2.5 mm²
  • Operating Temperature: -25°C to +70°C
  • Standard: EN54-3
Specifications

Colour

Red

Housing Material

Flame retardant ABS

Dimensions

ø90 x 75 mm (including base)

Operating Voltage

9 - 30 V DC

Cable Size

0.28 - 2.5 mm²

Power Consumption

3 - 30 mA

Sound Output @ 1m

76 - 110 dB

Volume Levels

3 (Low -20dBA, Medium -10dBA, High)

Number of Available Tones

32

Ingress Protection

IP45

Operating Temperature

-25 to +70 °C

Relative Humidity Resistance

93%

Standard

EN54-3

Documents

datasheet ESPBA2R
