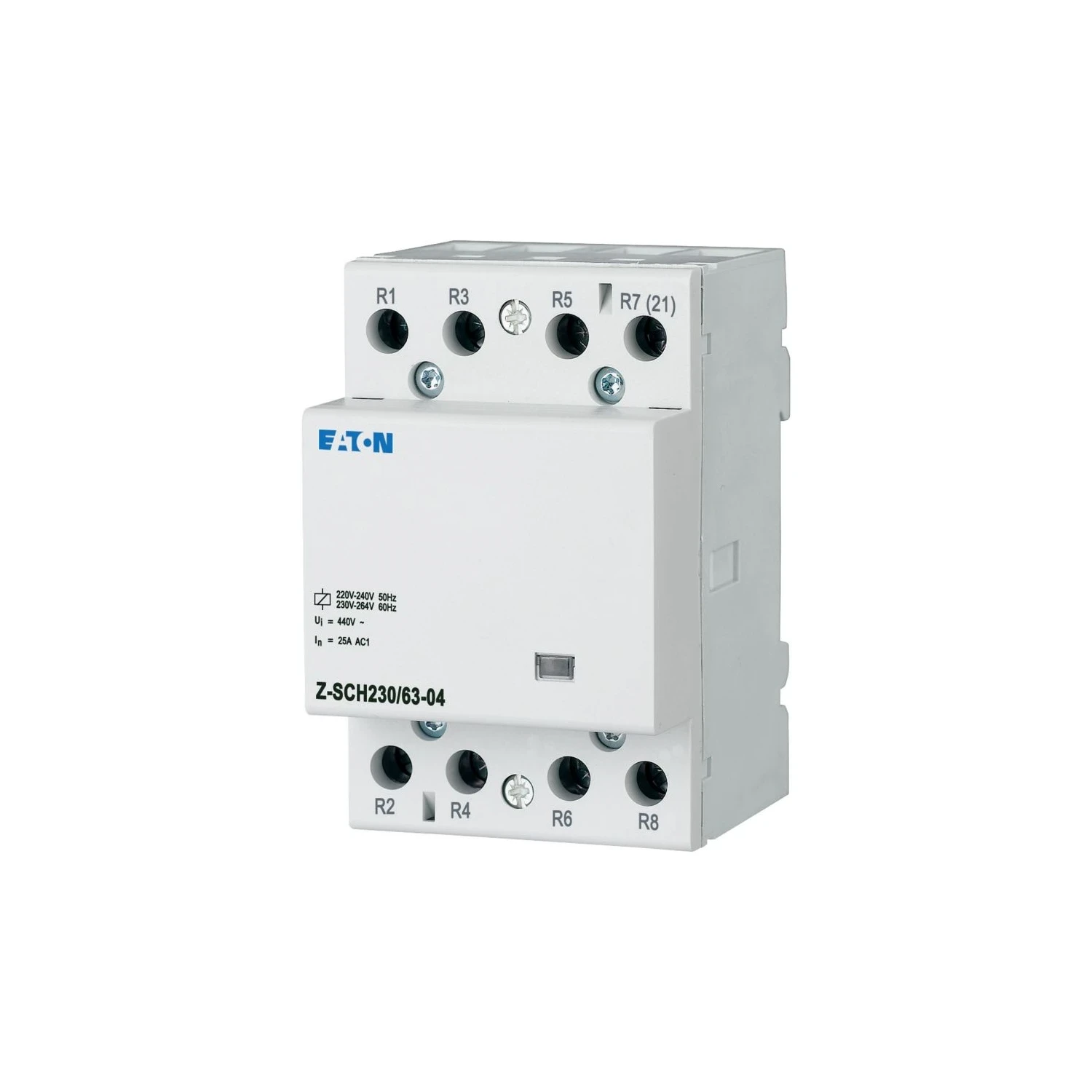

Eaton 4NC Modular Contactor 63A 230VAC Coil 3 Module DIN-Rail Installation

Product Information

Stock Code 285735
GTIN 4015082857356
Stock status: 2 available for delivery

priced individually

Net price: €102.42

Gross price

€125.97

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Eaton Z-SCH modular installation contactor for DIN-rail mounting in distribution boards and control panels. Four normally closed contacts, switching resistive and inductive loads such as heating and lighting circuits.

  • 63A rated current
  • 230V AC coil, operating range 195.5–253V
  • 4NC contact configuration
  • 3 module width, 60mm built-in depth
  • IP40 degree of protection
Specifications

Amperage Rating

63 A

Rated Operating Voltage (UE) Max

440 V

Coil Voltage Range

195.5–253 V AC

Number of Contacts (NC)

4

Number of Modular Spacings

3

Built-in Depth

60 mm

Degree of Protection

IP40

Utilization Category (EN IEC 60947-4-1)

AC-1

Ambient Operating Temperature Min

-40 °C

Weight

0.35 kg

Dimensions (L x H x W)

82 mm x 72 mm x 17.8 mm

Heat Dissipation (Current-Dependent)

28 W

Compliance

RoHS conform

Documents

datasheet 285735
