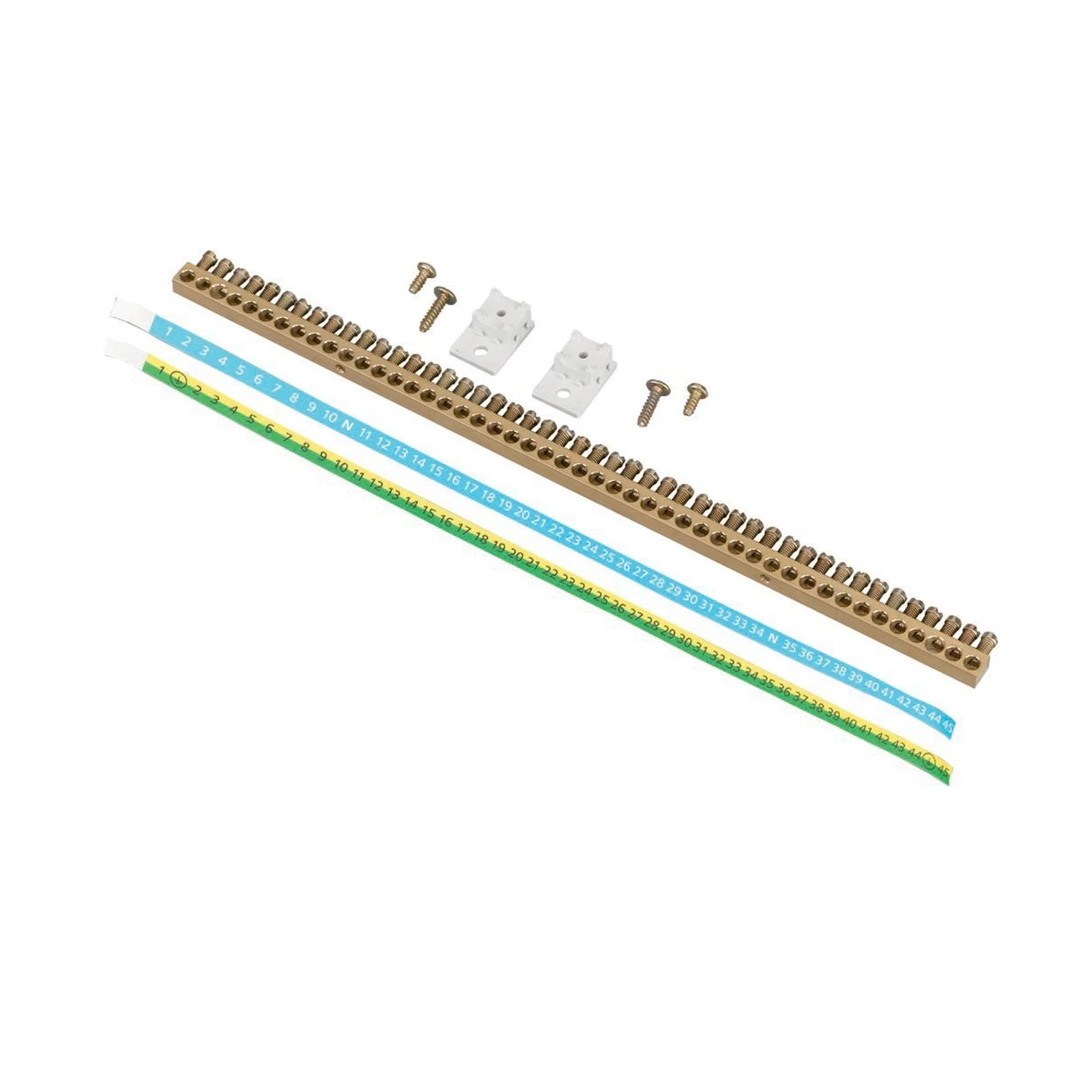

Eaton BF PE/N Terminal Kit 63A 45 Way 1.5-16mm² BFZ-TS-KL45

Product Information

Stock Code 293632
GTIN —
Stock status: 4 available for delivery

priced individually

Net price: €12.96

Gross price

€15.94

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

PE/N terminal kit for Eaton xComfort BF flat distribution boards. Used to terminate protective earth and neutral conductors within the final distribution board assembly.

  • Nominal current: 63A
  • Conductor range: 1.5-16mm² (input and output)
  • Connections: 45 total, 2 x 25mm² plus 43 x 16mm²
  • Mounting: screw terminal, single-pole
  • Weight: 0.23 kg
Specifications

Nominal Current

63 A

Number of Poles

Single-pole

Conductor Cross Section Input - Min

1.5 mm²

Conductor Cross Section Input - Max

16 mm²

Conductor Cross Section Output - Min

1.5 mm²

Conductor Cross Section Output - Max

16 mm²

Number of Connections (16 mm²)

43

Number of Connections (25 mm²)

2

Number of Connections (Total)

45

Mounting Method

Screw

Product Weight

0.23 kg

Product Height

360 mm

Product Width

50 mm

Product Length/Depth

15 mm

Compliance

RoHS conform
