DFX400C

Photo is representative

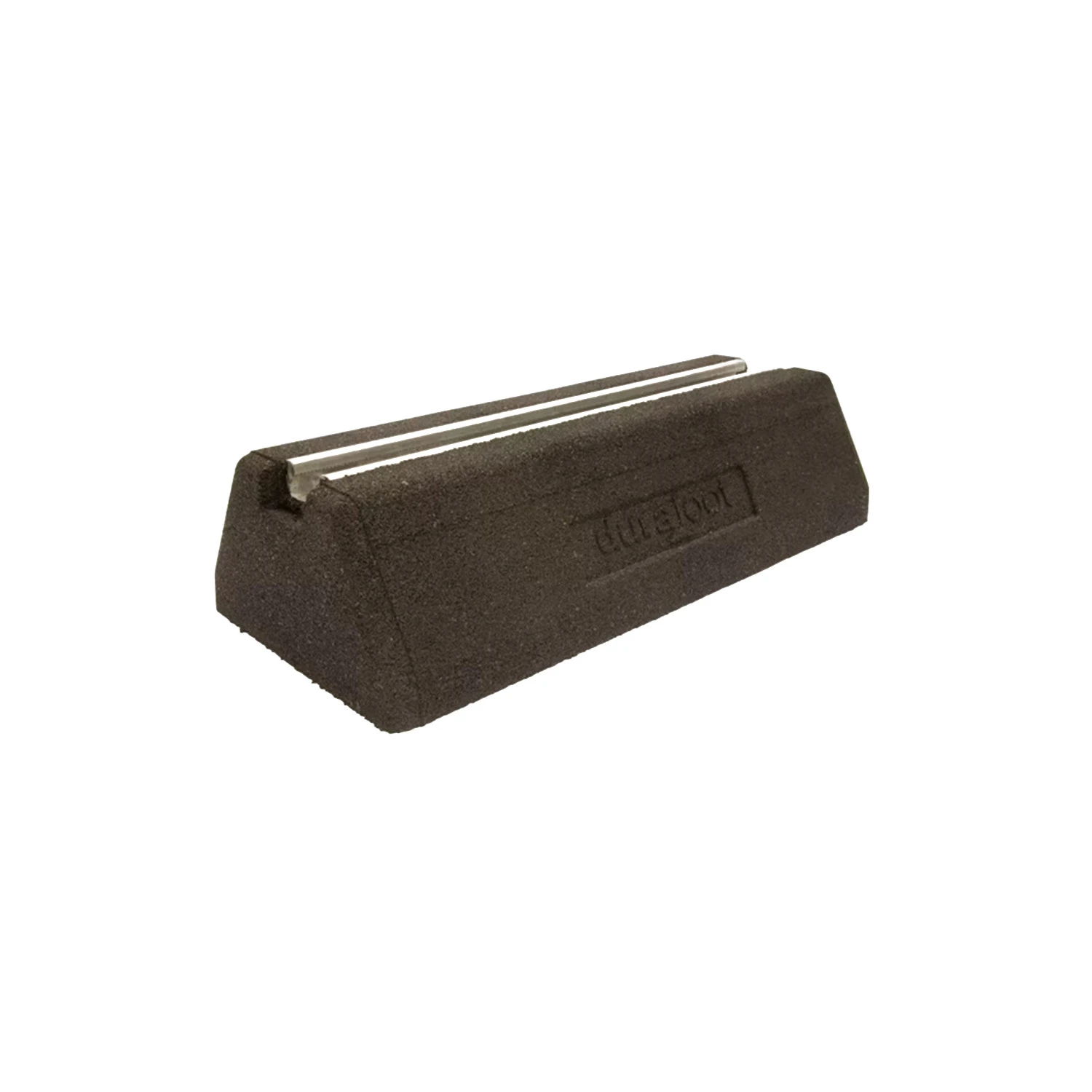

Durafoot FX 400 Non-Penetrating Roof Support Foot with 41x21 Channel

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code DFX400C
GTIN
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €19.66

Gross price

€24.18

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 9 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 28 day returns

The Durafoot FX 400 is a free-standing rooftop support foot used to carry building services across flat roofs, plant rooms and similar areas without penetrating the waterproof membrane. A 41x21mm pre-galvanised steel channel is moulded into a 400mm long recycled SBR rubber base, providing a fixing point fully compatible with Unistrut-type brackets and M10 channel fittings. The base is 180mm wide and 95mm high, weighs 4.2kg as ballast and supports a maximum load of 400kg per foot. The rubber base is UV-stabilised and offers anti-vibration properties, with a temperature tolerance from -40 to +80C for indoor or outdoor use. It supports cable tray, pipework and ducting without the need for a separate frame.

Specifications

Type

Non-penetrating rooftop support foot

Base length

400 mm

Base width

180 mm

Height

95 mm

Channel profile

41 x 21 mm strut channel

Channel material

Pre-galvanised steel (Z275 coating)

Base material

Recycled SBR rubber, UV-stabilised

Weight per foot

4.2 kg

Max load per foot

400 kg

Temperature range

-40 to +80 C, indoor / outdoor

Fixing compatibility

Unistrut-type brackets and fixings (M10)

Mounting

Free-standing, no roof penetration
