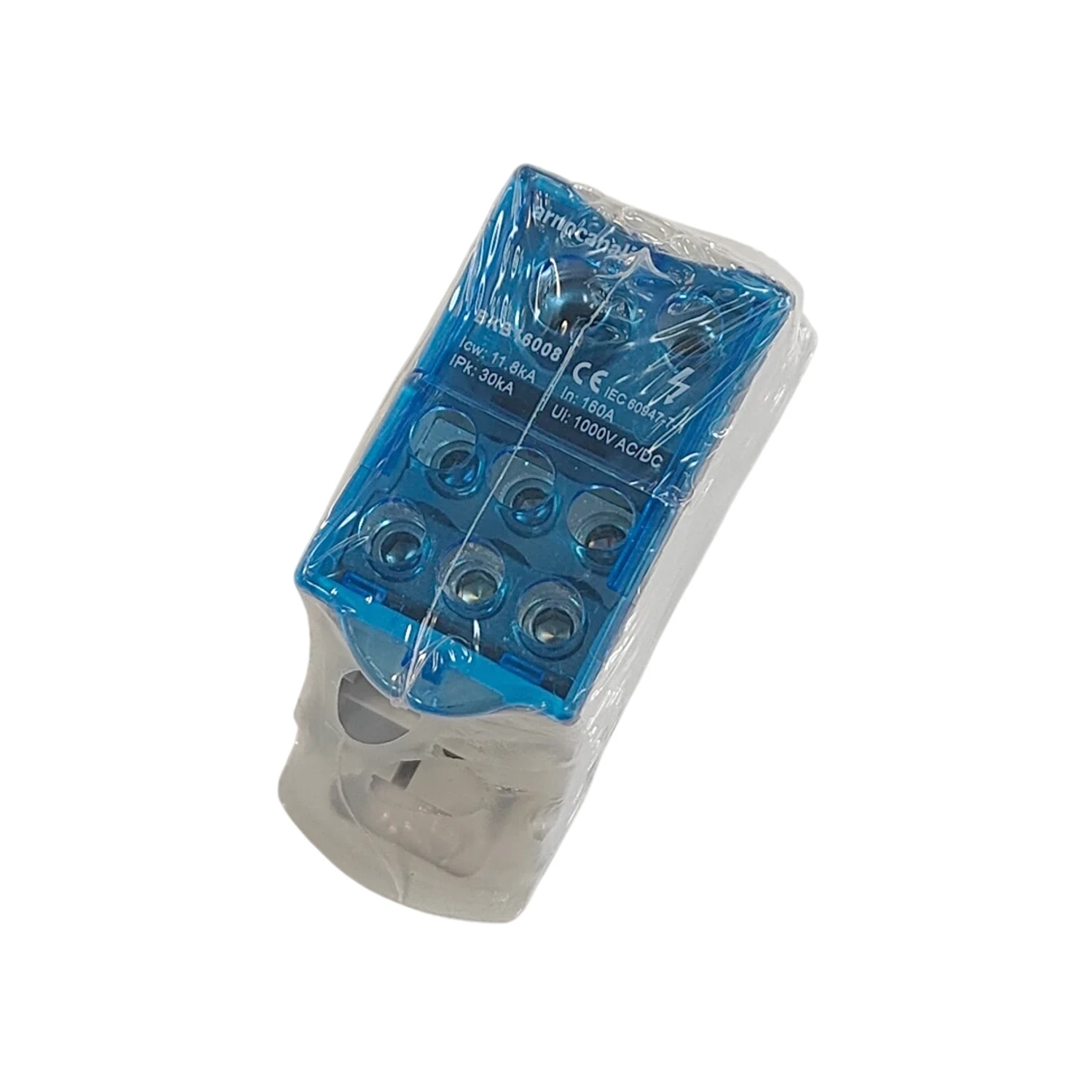

Distribution Block 1 Pole 160A 8 Way DIN Rail Mounted

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code BKB16008
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €10.76

Gross price

€13.24

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Single pole distribution block for splitting conductors in electrical panels and enclosures. Mounts on DIN Omega rail or direct to plate with fixing screws.

Eight connection holes per pole — one large for the incoming feed, seven for outgoing circuits.

  • 1 x Ø12.3 mm hole / 7 x Ø6.8 mm holes
  • Max conductor: 1 x 70 mm² / 7 x 16 mm²
  • Peak withstand: 30 kA (Ipk), 11.8 kA (Icw)
  • Working temp: -5°C to +85°C
  • CE, RoHS compliant — EN 60998-1:2004
Specifications

Rated Current

160 A

Poles

1

Ways (Holes per Pole)

8

Hole Dimensions

1 x Ø12.3 mm / 7 x Ø6.8 mm

Max Conductor Size

1 x 70 mm² / 7 x 16 mm²

Peak Withstand (Ipk)

30 kA

Short-Circuit Withstand (Icw)

11.8 kA

Mounting

DIN Omega rail or direct plate mounting

Bar Material

Brass

Shell Material

Polyamide/Polycarbonate

Working Temperature

-5°C to +85°C

Heat Resistance

130°C

Dimensions (A x B x C)

29 x 77 x 46 mm

Compliance

CE, RoHS 2015/863/UE, EN 60998-1:2004
