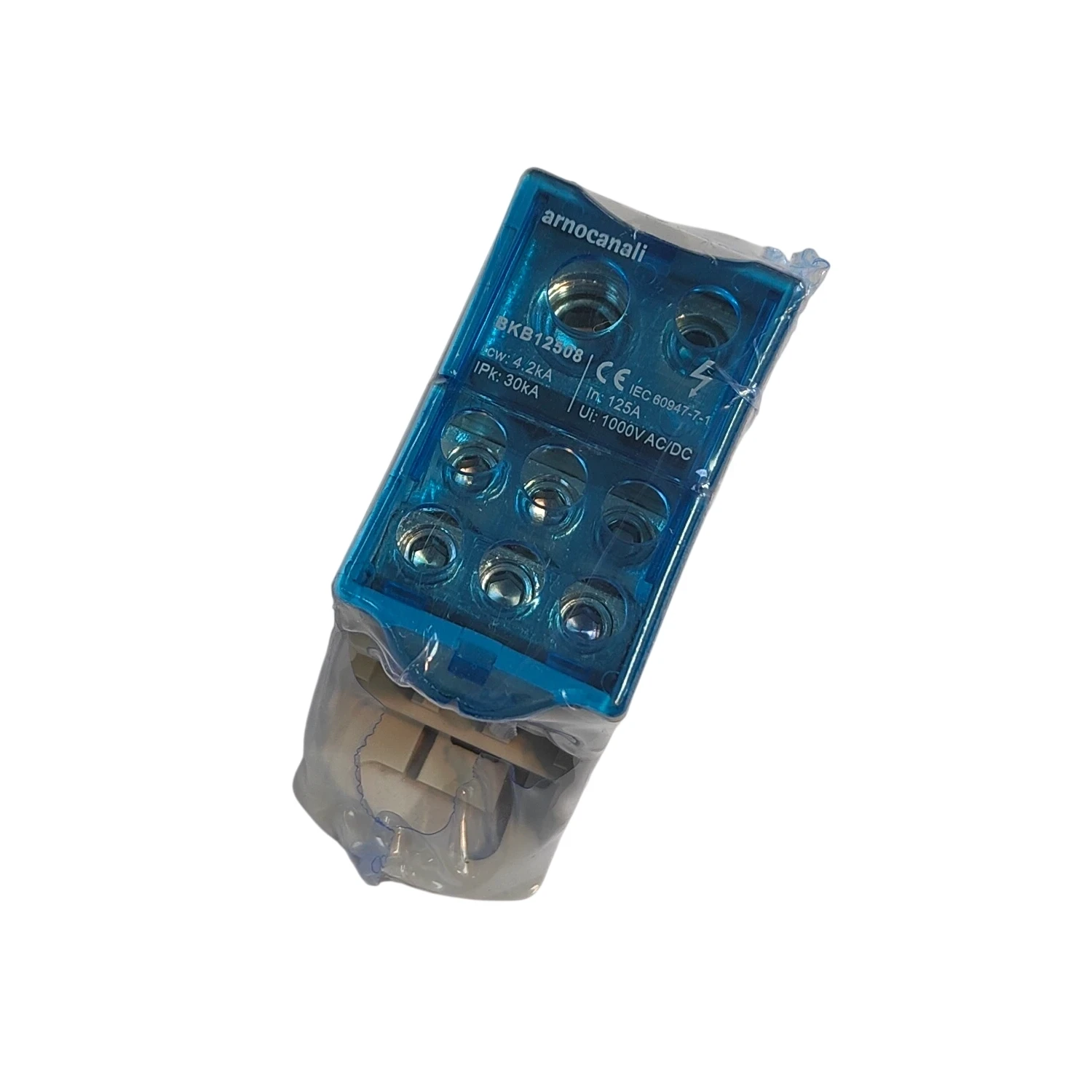

Distribution Block 1 Pole 125A 8 Way DIN Rail Mounted

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code BKB12508
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €8.55

Gross price

€10.51

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Single pole distribution block rated at 125A with 8 connection holes. Suits panel builds where you need to split a single phase across multiple outgoing conductors.

Mounts on DIN omega rail or direct to a back plate with fixing screws.

  • 1 x Ø10 mm hole (up to 35 mm²), 7 x Ø6.8 mm holes (up to 16 mm² each)
  • Peak short-circuit rating (Ipk): 30 kA
  • Working temp: -5°C to +85°C
  • Brass bar, polyamide/polycarbonate shell
Specifications

Rated Current

125 A

Poles

1

Ways (Holes per Pole)

8

Hole Dimensions

1 x Ø10 mm, 7 x Ø6.8 mm

Max Conductor Section

1 x 35 mm², 7 x 16 mm²

Ipk (Peak Short-Circuit)

30 kA

Icw (Short-Circuit Withstand)

4.2 kA

Tightening Torque

8.5 Nm (Ø10 mm), 3.5 Nm (Ø6.8 mm)

Mounting

DIN omega rail or direct plate mounting

Bar Material

Brass

Shell Material

Polyamide/Polycarbonate

Working Temperature

-5°C to +85°C

Heat Resistance

130°C

Dimensions (A x B x C)

29 x 77 x 46 mm

Standards

EN 60998-1:2004, CE, RoHS 2015/863/UE
