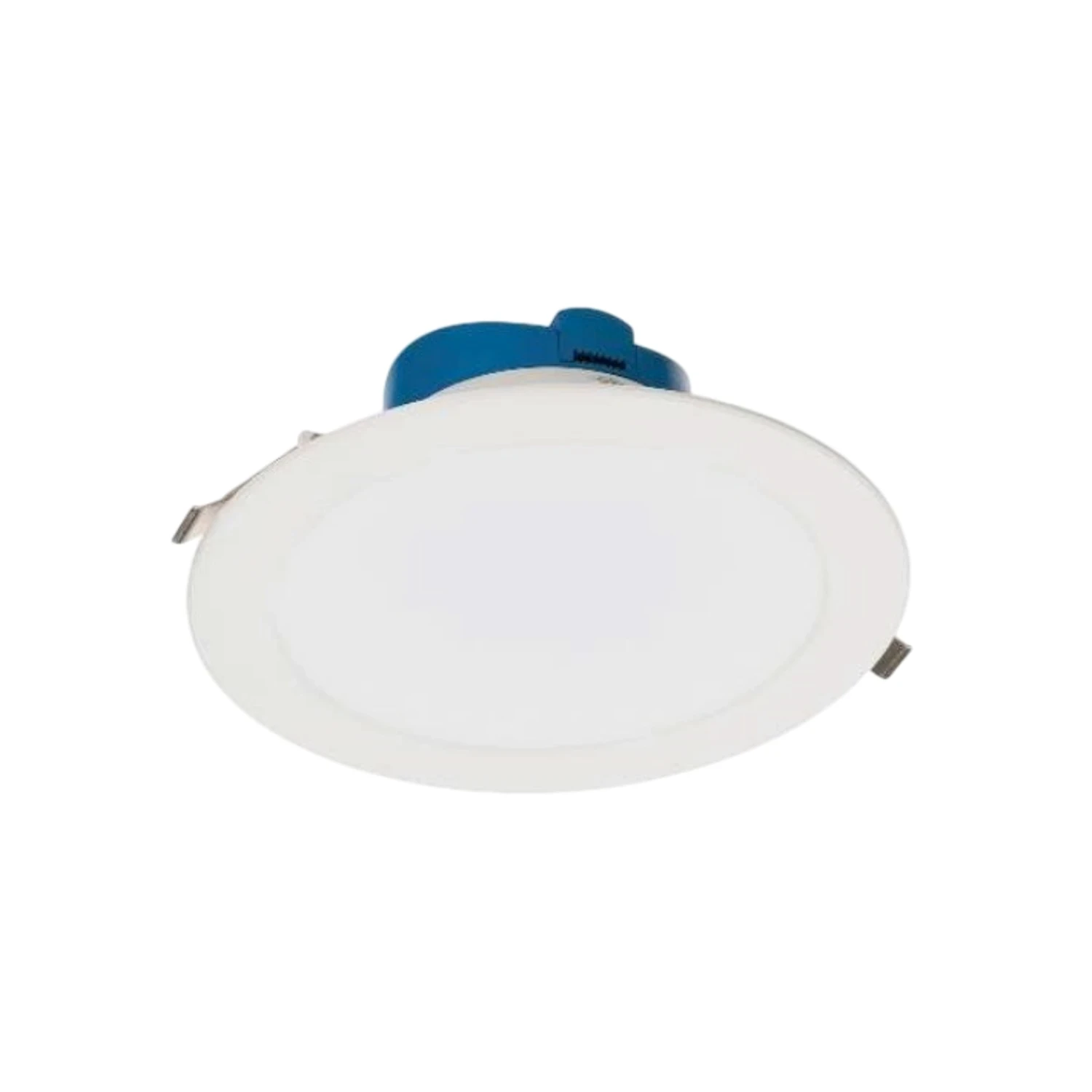

Com Lite CDL20MCD 19W Dimmable LED Downlight CCT Selectable IP54

Product Information

Stock Code CDL20MCD
GTIN —
Stock status: Out of stock

priced individually

Net price: €31.35

Gross price

€38.56

A 19W dimmable LED downlight for commercial fit-outs — carehomes, hotels, offices, retail.

CCT selectable on site between 2700K, 4000K and 5700K. IP54 rated for damp areas. Driver supports Dali, DSI, 1-10V and trailing/leading edge dimming, with emergency versions available.

  • 19W, 2150lm at 4000K, >110lm/W
  • CCT selectable 2700/4000/5700K
  • IP54, IK06, Class II
  • Cut out 200-210mm, 90° beam angle
  • Dali, DSI, 1-10V, trailing/leading edge dimmable
Specifications

Power Consumption

19W (±5%)

Input Voltage

220-240 VAC, 50-60Hz

Power Factor

>0.90

Luminous Flux (3000K)

1885lm (±10%)

Luminous Flux (4000K)

2150lm (±10%)

Efficiency (4000K)

>110lm per watt

Colour Rendering Index

Ra80

Colour Temperature

2700/4000/5700K selectable

Beam Angle

90 degrees

IP Rating

IP54

IK Rating

IK06

Class

Class II

Cut Out

200-210mm

Dimensions (Dia x Height)

225x84mm

Lifetime of LED @ Ta=25°C

>60,000hrs L80B20
