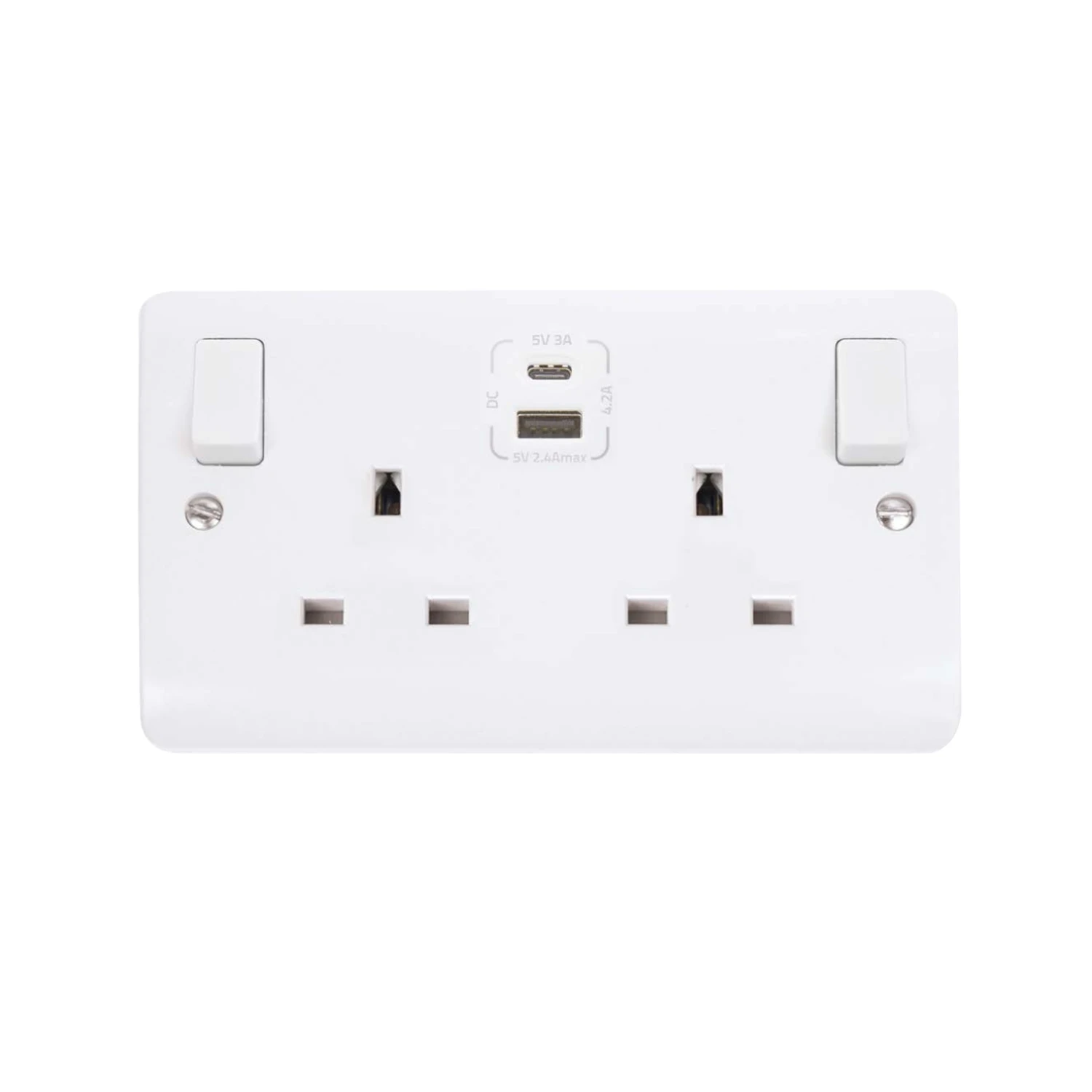

Click Mode 2-Gang Switched Socket 13A USB-A USB-C Polar White

Product Information

Stock Code CMA786
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €25.49

Gross price

€31.36

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Click Mode 2-gang 13A switched socket with integrated USB-A and USB-C charging ports, finished in Polar White.

Gives two switched 13A outlets plus USB charging from a single plate - useful in kitchens, living rooms or home offices where socket space is tight.

  • 13A resistive load rating, 250V AC
  • USB output: 4.2A total, 5V DC, Type A & Type C
  • Single pole switched, 3 pin safety shuttered
  • Terminal capacity: 3 x 2.5mm² or 2 x 4mm²
  • Minimum back box depth: 25mm
Specifications

Operating Voltage (AC)

250 V

Frequency

50 Hz

Resistive Load Rating

13 A

USB Charging Total Load

4.2 A

USB Charging Voltage (DC)

5 V

Terminal Capacity - Solid

3 x 2.5 or 2 x 4 mm²

Minimum Back Box Depth

25 mm

Ingress Protection

IP20

Operational Temperature

-5 to +40 °C

Standards

BS 1363-2: 2016 +A1: 2018, BS EN IEC 62368-1, BS EN 62680-1-1

Overall Dimensions

146 mm × 86 mm × 31 mm

Terminal Size

Ø5 mm

Documents

datasheet CMA786

Frequently asked questions

What minimum backbox depth is required for the CMA786 installation?

Requires 25mm minimum backbox depth for flush mounting. Standard 35mm backbox provides optimal cable management space for the integrated USB electronics.

Can both USB ports charge simultaneously at full amperage?

Type-C delivers 3A independently. Type-A provides 2.4A when used alone or 1.2A when both ports charge simultaneously, totaling 4.2A maximum output.

What torque setting should be used for terminal connections?

Terminal screws require 1.2Nm torque for secure connections. Terminals accept 3 x 2.5mm² solid conductors or 2 x 4mm² for higher load circuits.

Is this socket suitable for kitchen installations?

Yes, IP20 rating suitable for dry indoor locations. Antimicrobial coating provides 99.9% kill rate against bacteria including MRSA, E-Coli and Salmonella.

Does the CMA786 meet current Building Regulations Part P requirements?

Yes, BS 1363-2:2016 compliant with CE UKCA marking. Installation in kitchens may require Part P notification depending on circuit modifications required.
