GM2018BKSCDW

Photo is representative

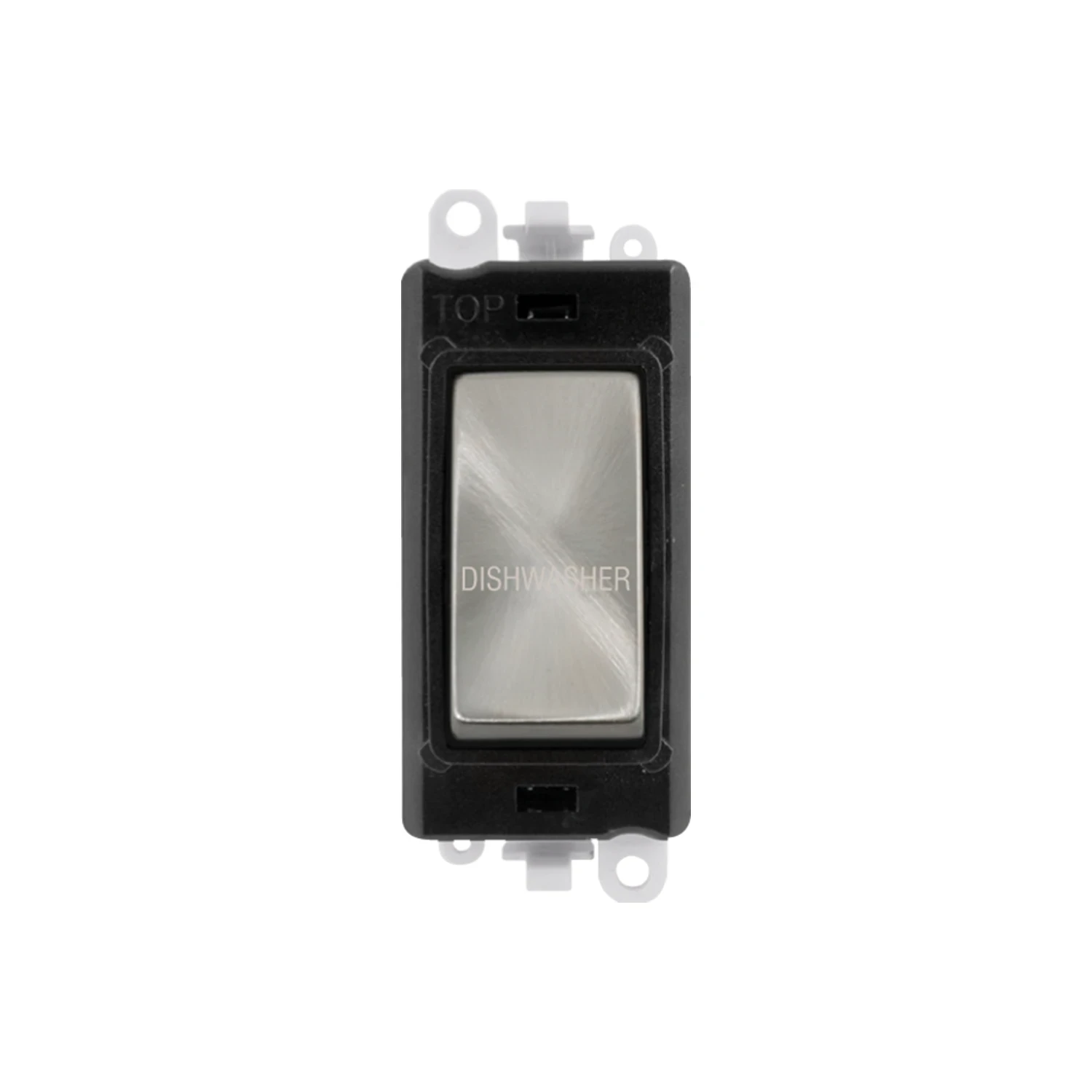

Click GridPro 20AX DP Dishwasher Switch Satin Chrome Black Insert

Product Information

Stock Code GM2018BKSCDW
GTIN —
Stock status: 7 available for delivery

priced individually

Net price: €10.47

Gross price

€12.88

Branch Stock

Monaghan

Stock status: 7 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

GridPro 20AX double pole switch module marked “Dishwasher”, satin chrome finish with black insert. Fits the Click GridPro modular grid system for domestic media/utility switch panels.

  • 20AX rating, 250V AC, 50Hz
  • Screw terminals, Ø5mm, 1.2Nm torque, 3 x 2.5mm² or 2 x 4mm² capacity
  • Minimum back box depth 25mm (35mm for flat plate)
  • IP20, operating temperature -5°C to +40°C
  • Complies with BS EN 60669-1
Specifications

Operating Voltage (AC)

250V

Frequency

50Hz

Load Rating

20AX, suitable for fluorescent or inductive loads

Poles

Double Pole

Termination Type

Screw

Terminal Size

Ø5mm

Terminal Torque Value

1.2Nm

Terminal Capacity (Solid)

3 x 2.5mm² or 2 x 4mm²

Dimensions

24.5mm (W) x 50mm (H) x 22.5mm (D)

Minimum Back Box Depth

25mm (35mm Flat Plate)

IP Rating

IP20

Operating Temperature

-5°C to +40°C

Standards

BS EN 60669-1
