Photo is representative
Chint NXW1-3 3 Module Plastic Enclosure IP65 with DIN Rail
Product Information
Stock Code
NXW1-3
GTIN
—
Stock status: Out of stock
priced individually
Net price: €29.73
Gross price
€36.56

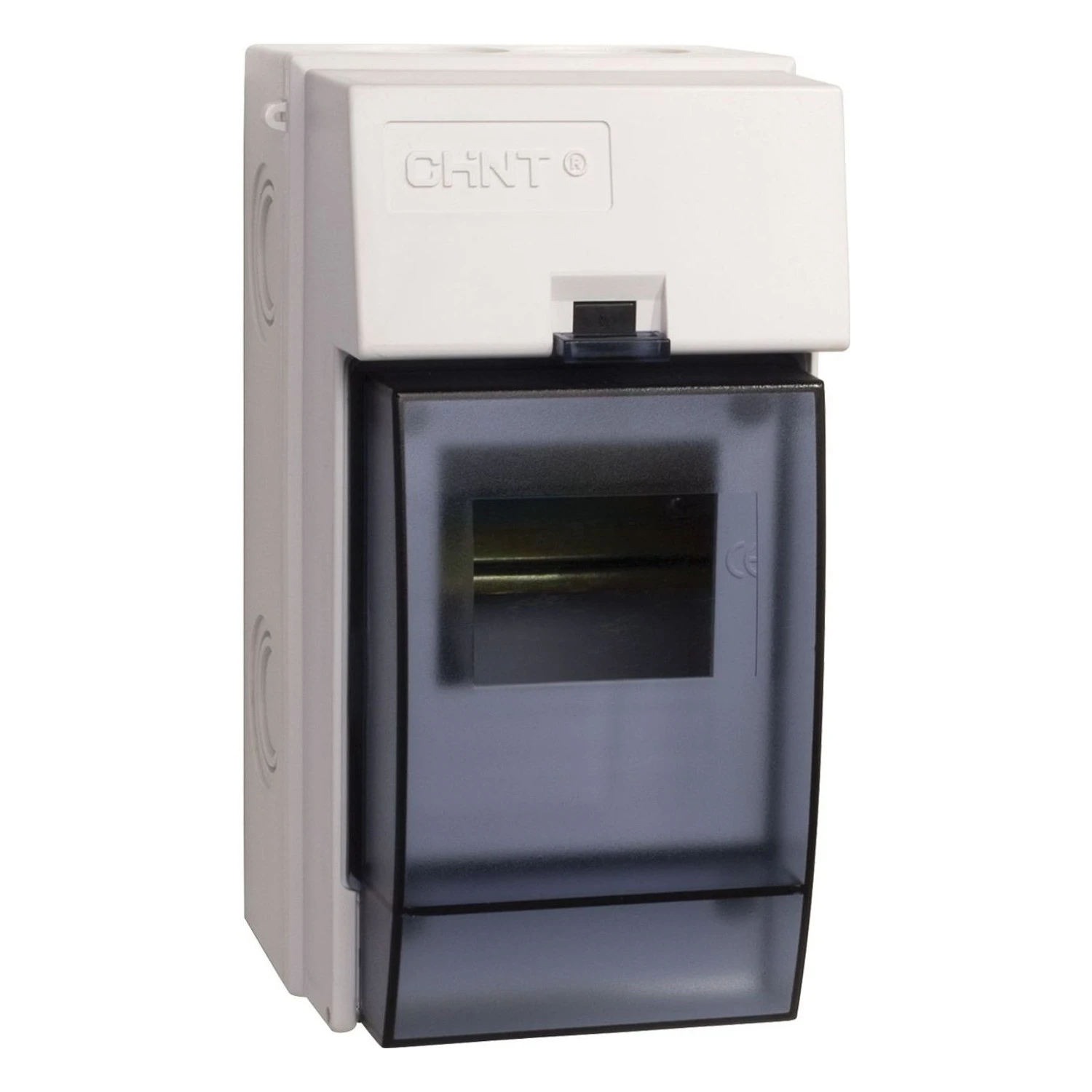

The Chint NXW1-3 is an empty plastic enclosure for three DIN-rail modules, from the NXW1 range that Chint describe as a consumer unit for outdoor applications. It is rated IP65 and supplied with a DIN rail and internal terminal blocks for neutral and protective earth.
The enclosure is rated for use up to 63A at 230V AC, 50/60Hz, with an allowable temperature rise of 40K, and is made to IEC/EN 60439-3 (IEC/EN 60670-24). Overall dimensions are approximately 184 x 112.6mm with a depth of 108mm. Devices are fitted separately.
