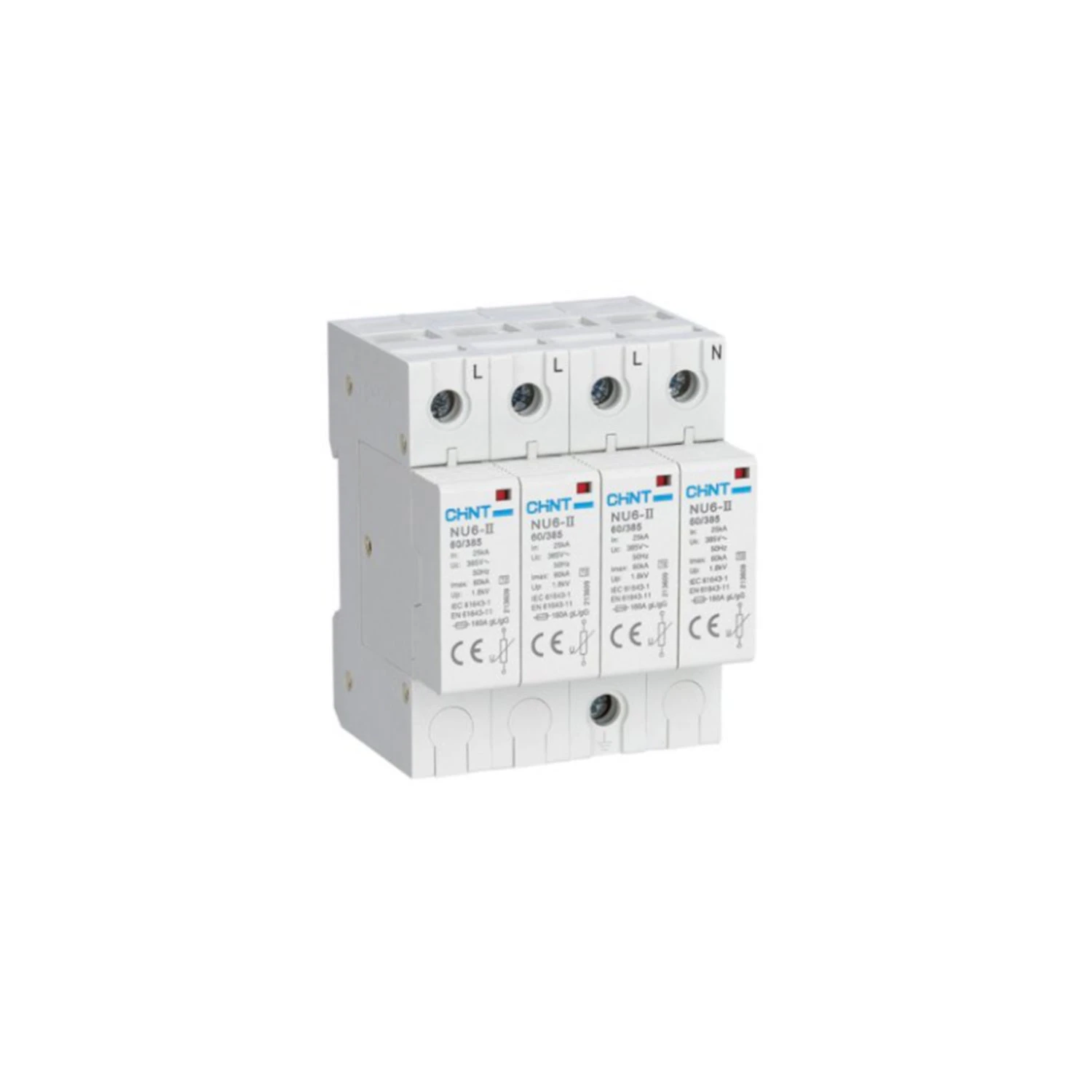

Chint NU6-IIG Type 2 Surge Arrester 4P 65kA 440V
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: €84.15
Gross price
€103.50
Mon‐Fri · Subject to order volume Free delivery available 28 day returns
The Chint NU6-IIG is a Type 2 (Test Class II) surge protective device for the protection of low-voltage power distribution systems against transient overvoltages from switching and indirect lightning. This four-pole version has a maximum continuous operating voltage of 440V AC, a nominal discharge current of 30kA and a maximum discharge current of 65kA on the 8/20µs waveform, with a voltage protection level of 2.2kV. It uses pluggable protective modules that can be replaced without disconnecting the circuit, and a window indicator shows module status. The device mounts on 35mm DIN rail across four 18mm modules and complies with IEC/EN 61643-11.
