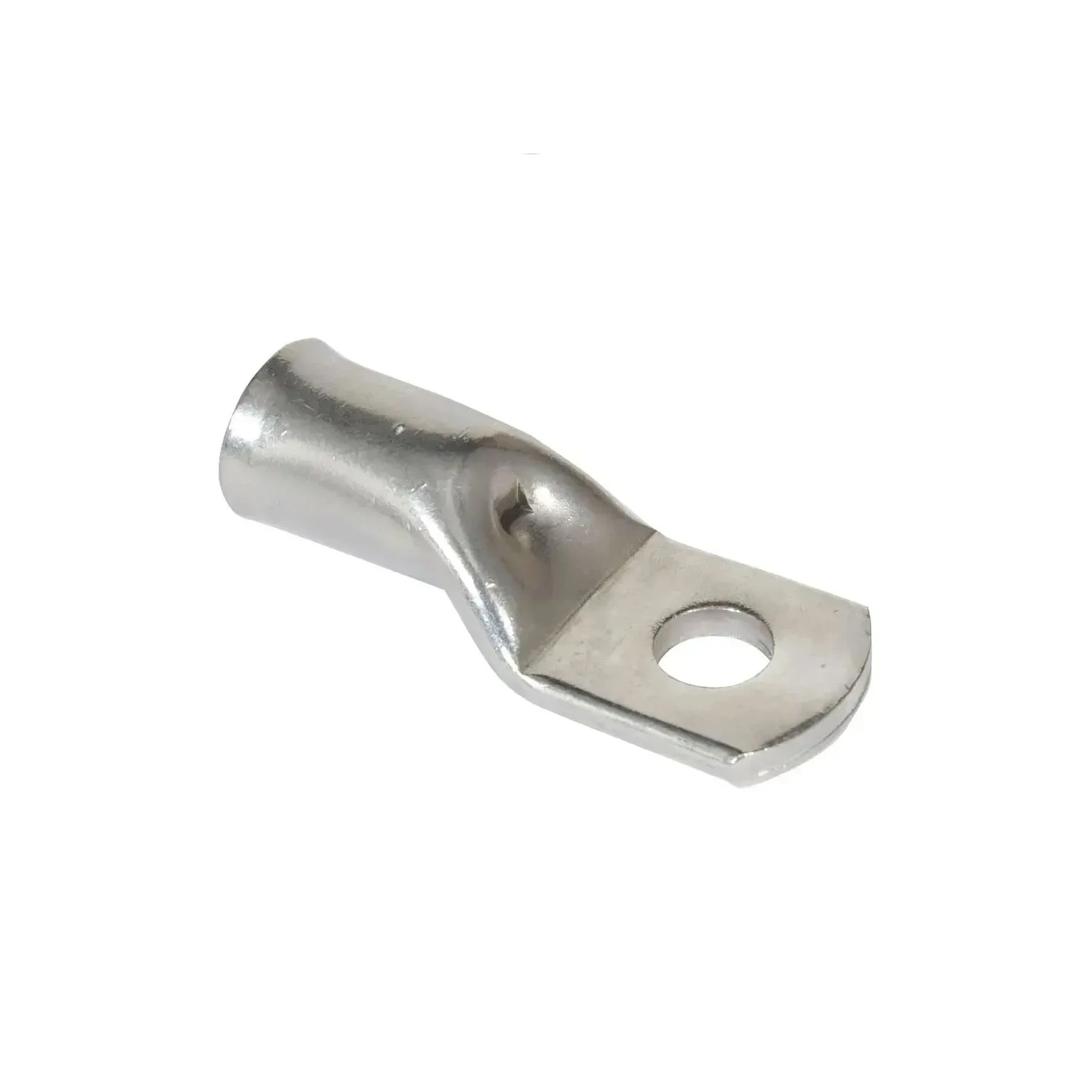

Cable Lug 240mm 16mm Hole Heavy Duty Tinned Copper
Product Information
priced individually
Net price: €13.55
Gross price
€16.66
Mon–Fri Free delivery over €61.50
Typically shipped within 1-2 working days 28-day returns
On unused items
Heavy-duty compression cable lug sized for 240mm² copper conductors. The ring/tube terminal has a 16mm (M16) stud hole for bolted connection to busbars, panels and switchgear. Made from tin-plated electrolytic copper, the tin coating helps resist oxidation and corrosion at the termination. The long barrel is crimped onto the conductor with a hydraulic or mechanical crimp tool using hexagonal dies, giving a mechanically secure, low-resistance joint. Construction follows heavy-duty compression-lug practice consistent with DIN 46235 for 240mm² / M16 terminals. Suited to low-voltage power cable terminations in distribution and industrial installations.
