PSDUC24230SMLGREEN

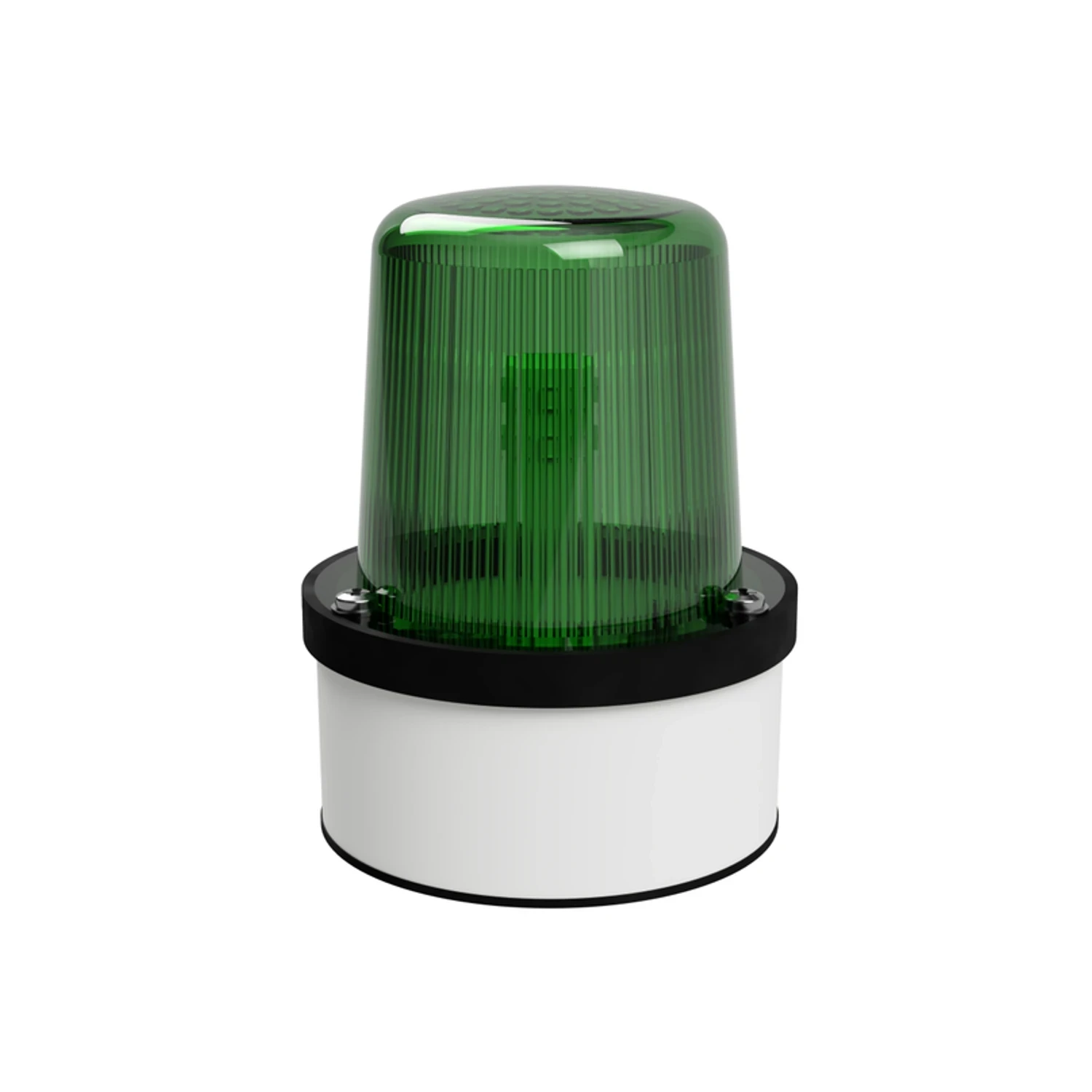

Photo is representative

Beacon 24-230V AC/DC Green LED IP65 Static/Flashing Small Surface Mount

Product Information

Stock Code PSDUC24230SMLGREEN
GTIN 5060995741697
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €95.32

Gross price

€117.25

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

LED beacon designed as a direct replacement for the legacy B15d filament lamp beacon. Runs on AC or DC supply across a wide voltage range, with static (non-flashing) or standard pulse operation selectable by jumper link or customer connection.

  • Nominal voltage: 24-230V AC/DC (21-264V range)
  • Flash rate: 120 FPM (2Hz) when set to pulse
  • IP65 rated, ABS base with polycarbonate lens
  • Current draw: 0.018-0.112A
  • Operating temperature: -20°C to +45°C
Specifications

IP Rating

IP65

Mounting Method

Surface Mounting

Base Material

ABS

Lens Material

Polycarbonate

Lens Colour

Green

Operating Temperature

-20°C to +45°C

Nominal Supply Voltage

24-230V

Voltage Range

21-264V

Current Draw

0.018-0.112A

Fuse

0.5A TD, External

Light Source

LED

Flashing Frequency

120 FPM

Luminous Intensity

6 Cd

Size

102 x 79mm dia.

Weight

0.144kg

Documents

datasheet PSDUC24230SMLGREEN
