PSDDC1236SMLGREEN

Photo is representative

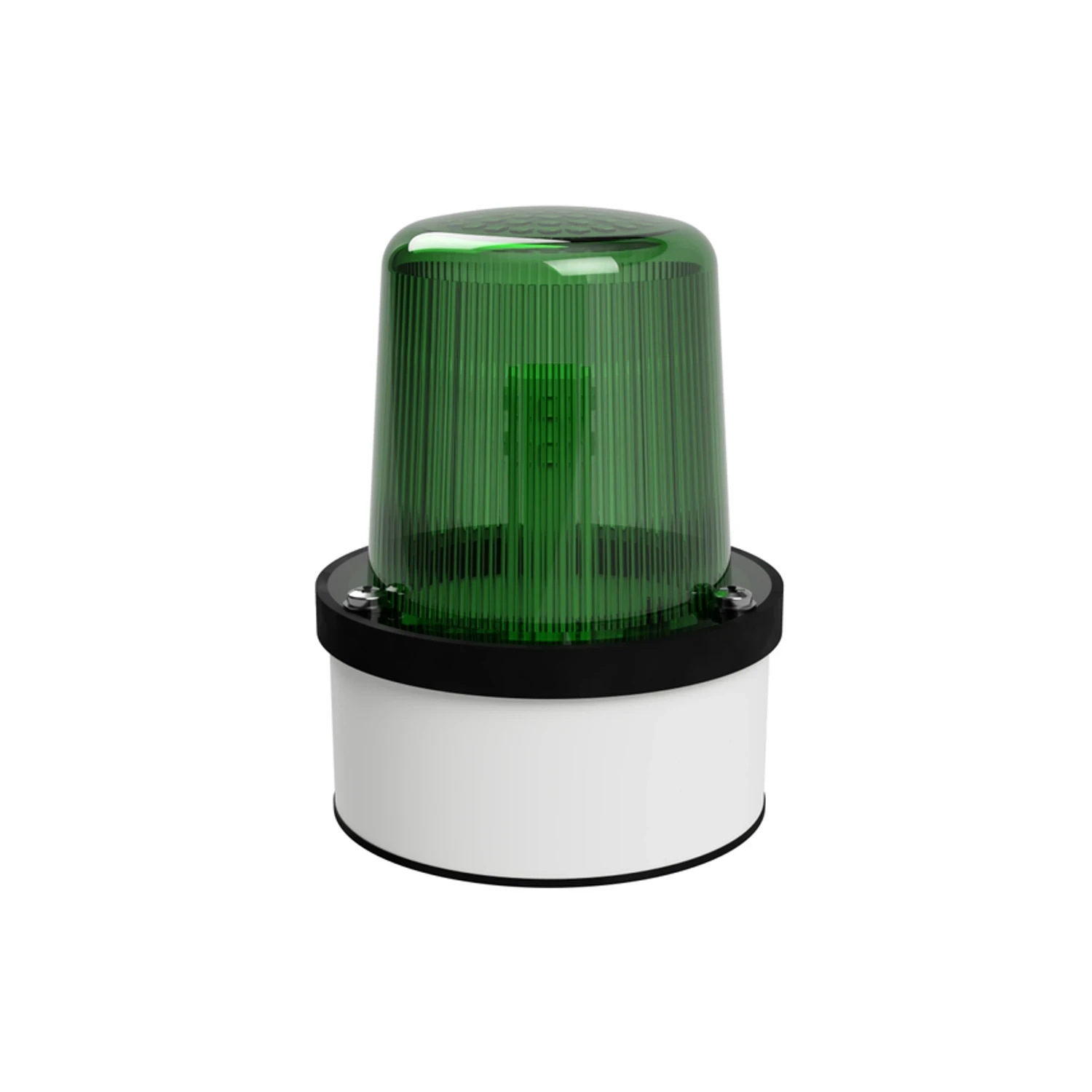

Beacon 12-36VDC Green LED IP65 Static/Flashing Surface Mount Small

Product Information

Stock Code PSDDC1236SMLGREEN
GTIN 5056711302242
Stock status: Available for delivery

priced individually

Net price: €92.25

Gross price

€113.47

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Series D pulsed LED beacon in green, built as a direct swap for legacy B15d filament lamp beacons. Runs on 12-36VDC supply with selectable static (non-flashing) or pulsed operation at 120 fpm (2Hz), switchable via customer connections or jumper link for remote control.

  • Lens colour: Green
  • IP65 rated
  • Surface mounting, 102mm x 79mm dia.
  • Operating temp: -20°C to +45°C
  • Current draw: 0.086A, external 0.5A TD fuse
Specifications

Nominal Supply Voltage

12-36 Vdc

Current Draw

0.086 A

IP Rating

IP65

Lens Colour

Green

Mounting Method

Surface mounting

Operating Temperature Range

-20 to +45 °C

Dimensions

102mm x 79mm dia.

Weight

0.128 kg

Fuse Rating

0.5 A TD

Flashing Frequency

120 FPM

Luminous Intensity

5 Cd

Base Material

ABS

Lens Material

Polycarbonate

Compliance

RoHS3 (EU DIRECTIVE 2015/863) compliant

Documents

datasheet PSDDC1236SMLGREEN
