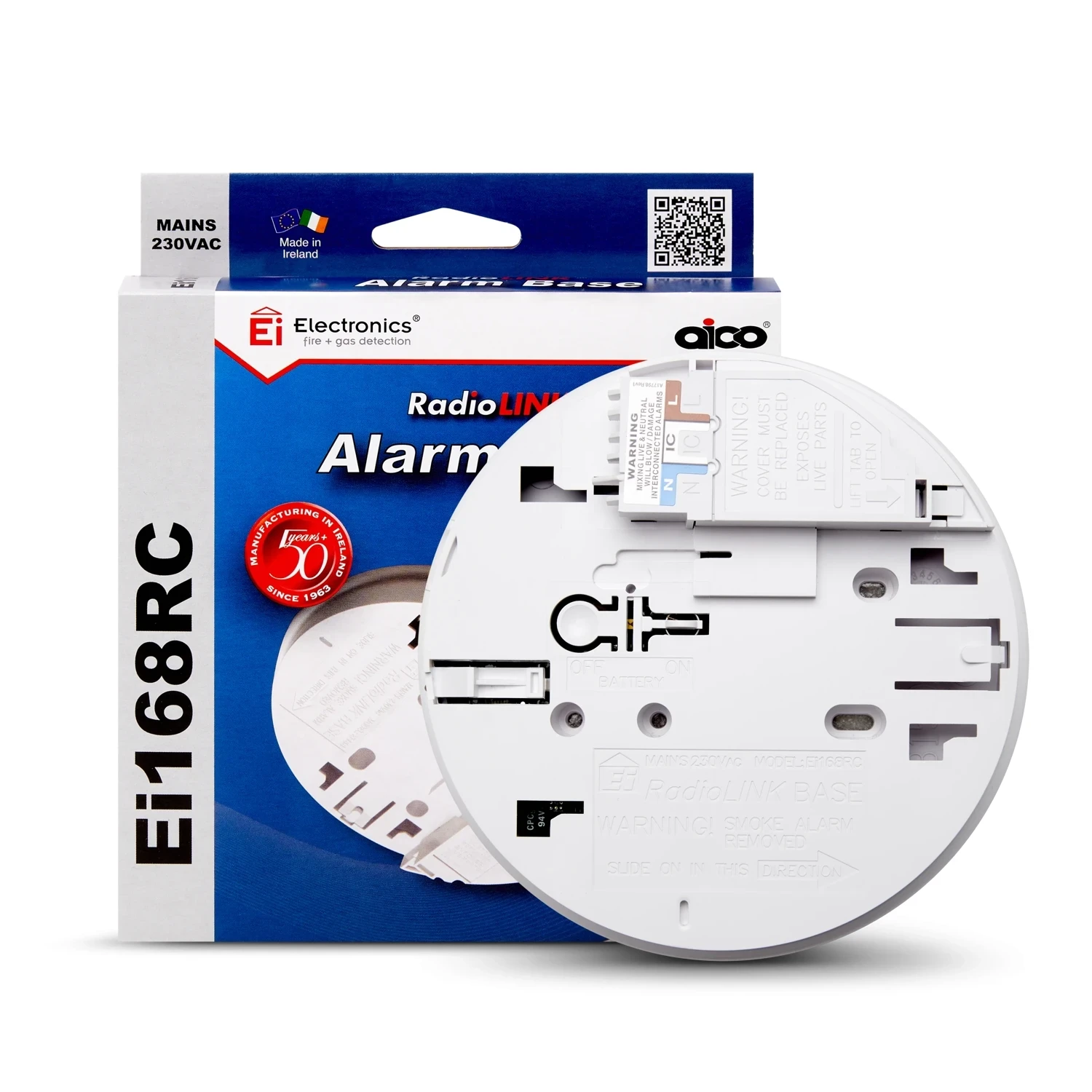

Aico Ei168RC RadioLINK Base for Ei140RC Series Alarms 230V AC

Product Information

Stock Code EI168RC
GTIN 5099383004281
Stock status: Available for delivery

priced individually

Net price: €73.24

Gross price

€90.09

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 28 day returns

Ei168RC is a mains-powered easi-fit mounting base with built-in RF circuit, fitted beneath Ei140RC Series alarms (Ei146e, Ei144e). It replaces the standard easi-fit base to give an alarm RadioLINK wireless interconnect capability.

Use it to expand an existing hard-wired interlinked system into a hybrid setup without rewiring, or build a fully wireless RadioLINK system. Up to 12 RF devices can be house-coded together — trigger one, and all alarms in the system sound.

  • Supply: 230V AC, 50Hz, 2.4W
  • Battery back-up: rechargeable lithium cell
  • RF: 868.499MHz RadioLINK protocol, 100m free air / 30m in a standard property
  • Compatible with Ei140RC Series, RadioLINK+, SmartLINK devices
  • Operating temp: 0°C to 40°C
Specifications

Supply Voltage

230V AC, 50Hz

Power Consumption

2.4W

Battery Back-up

Rechargeable lithium cells

RF Frequency

868.499MHz RadioLINK protocol

RF Range

100 metres in free air; 30 metres in a standard property

Operating Temperature

0°C - 40°C

Storage Temperature

0°C - 35°C

Humidity Range

15% - 95% Relative Humidity

Plastic Material

HIP UL 94 V0 Flame Retardant

Dimensions

150mm x 37mm (20mm installed)

Weight

176g (Boxed 235g)

Compliance

EN 300 220-3 (Radio); EN 301 489-3 (EMC)

Documents

datasheet EI168RC
