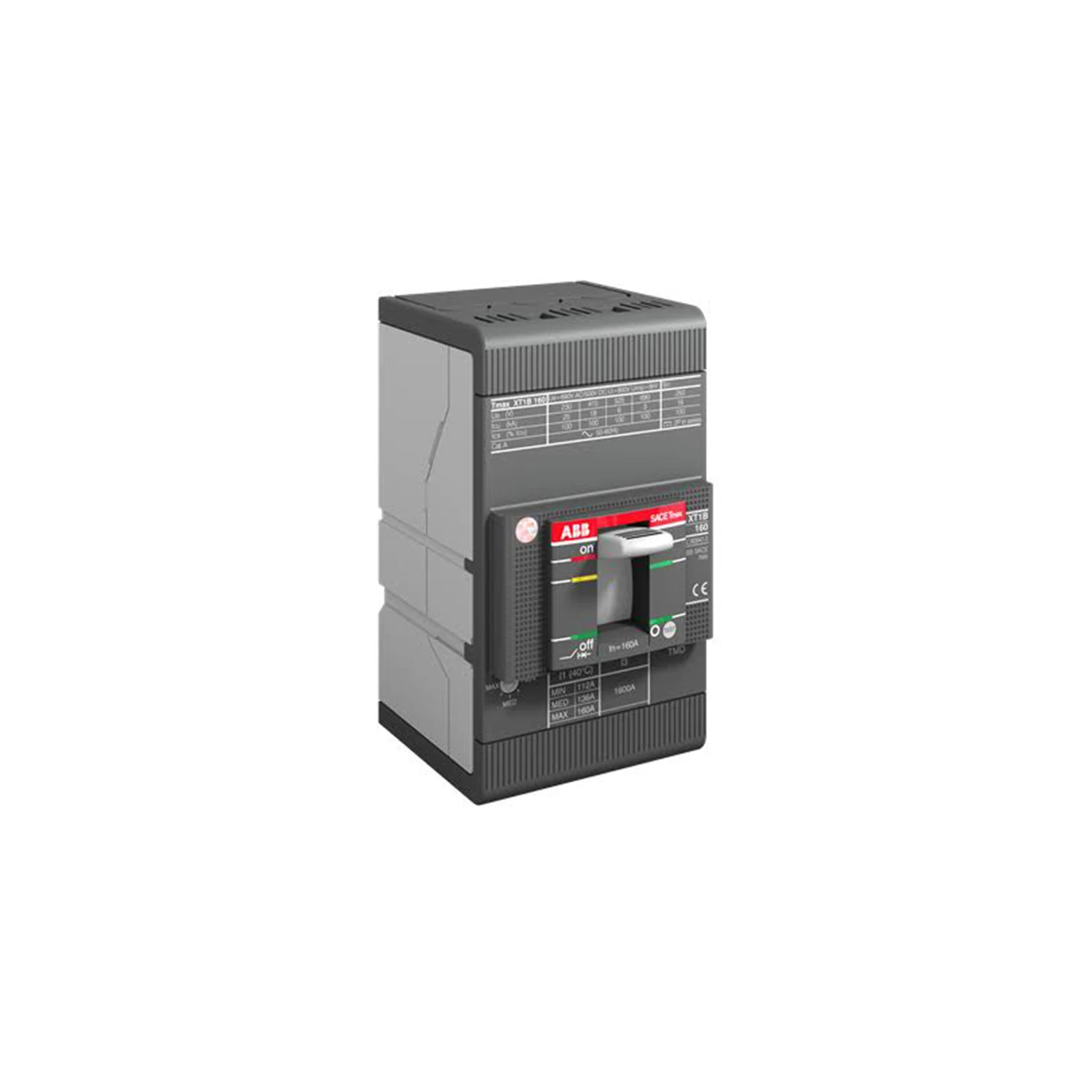

Photo is representative
ABB Tmax XT3N 250 MCCB 200A 3 Pole TMD, 36kA, Front Terminals
Product Information
priced individually
Net price: €550.00
Gross price
€676.50
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
The ABB SACE Tmax XT3N 250 is a three-pole moulded case circuit breaker on the 250A frame, fitted with a TMD thermomagnetic trip unit rated at 200A. The thermal element is adjustable from 140 to 200A (0.7-1.0 x In) for overload protection, while the magnetic trip is fixed at 2000A for short-circuit protection. It offers an ultimate breaking capacity (Icu) of 36kA at 415V AC, with a service breaking capacity (Ics) of 36kA. Rated operational voltage is 690V AC with an 800V insulation voltage. The breaker is the fixed version with front bolted terminals and is built to IEC 60947-2. It measures 105 x 150 x 70mm and weighs 1.7kg. ABB ordering code 1SDA068058R1.
