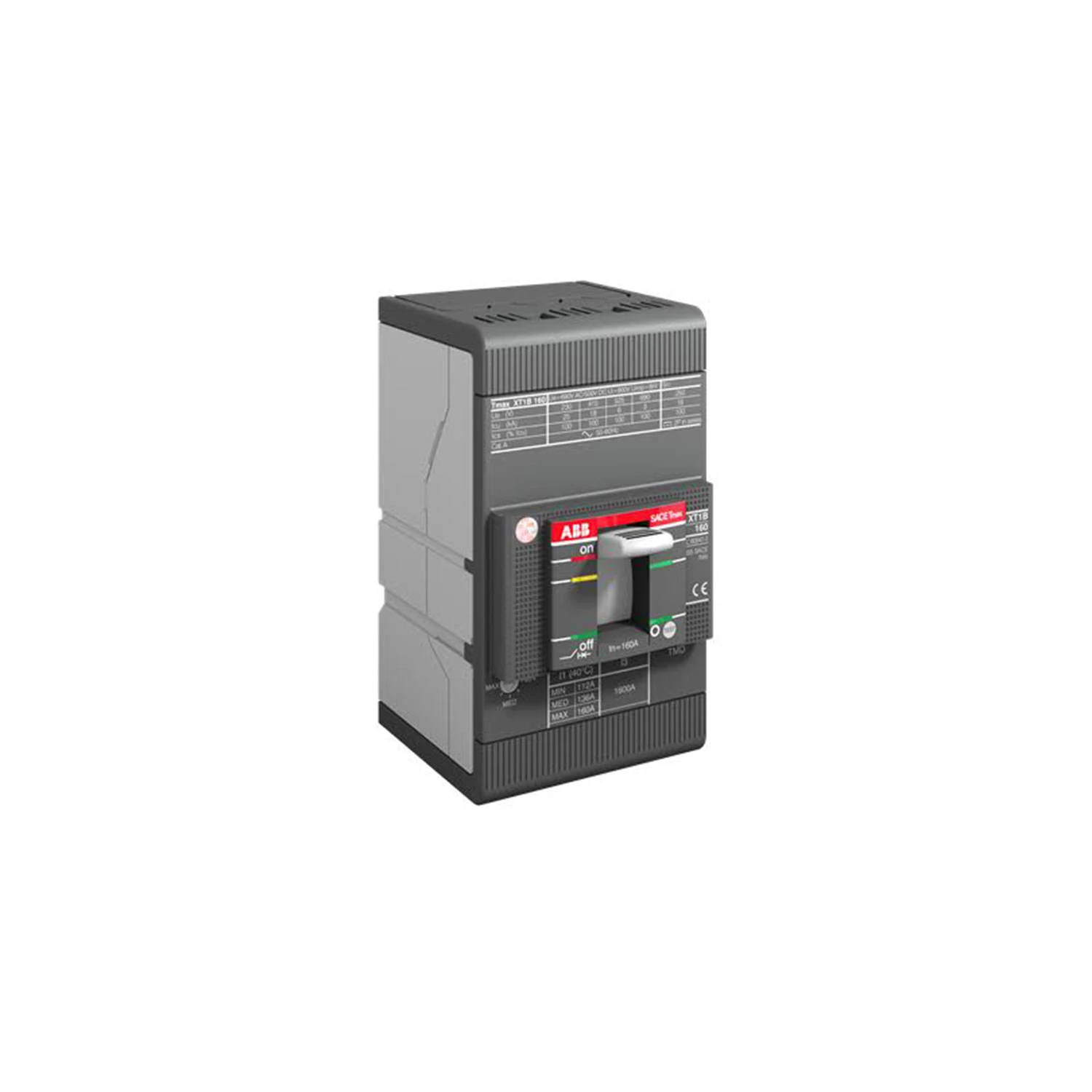

Photo is representative
ABB Tmax XT1B 160 MCCB 63A 3 Pole TMD, 18kA, Front Terminals
Product Information
priced individually
Net price: €159.35
Gross price
€196.01
The ABB SACE Tmax XT1B 160 is a three-pole moulded case circuit breaker fitted with a TMD thermomagnetic trip unit rated at 63A. The thermal element is adjustable from 44.1 to 63A (0.7-1.0 x In) for overload protection, while the magnetic trip is fixed at 630A for short-circuit protection. It offers an ultimate breaking capacity (Icu) of 18kA at 415V AC, with a service breaking capacity (Ics) of 18kA. Rated operational voltage is 690V AC with an 800V insulation voltage. The breaker is the fixed version with front terminals and is built to IEC 60947-2, utilisation category A. It measures 76.2 x 130 x 70mm and weighs approximately 1.08kg. ABB ordering code 1SDA066805R1.
