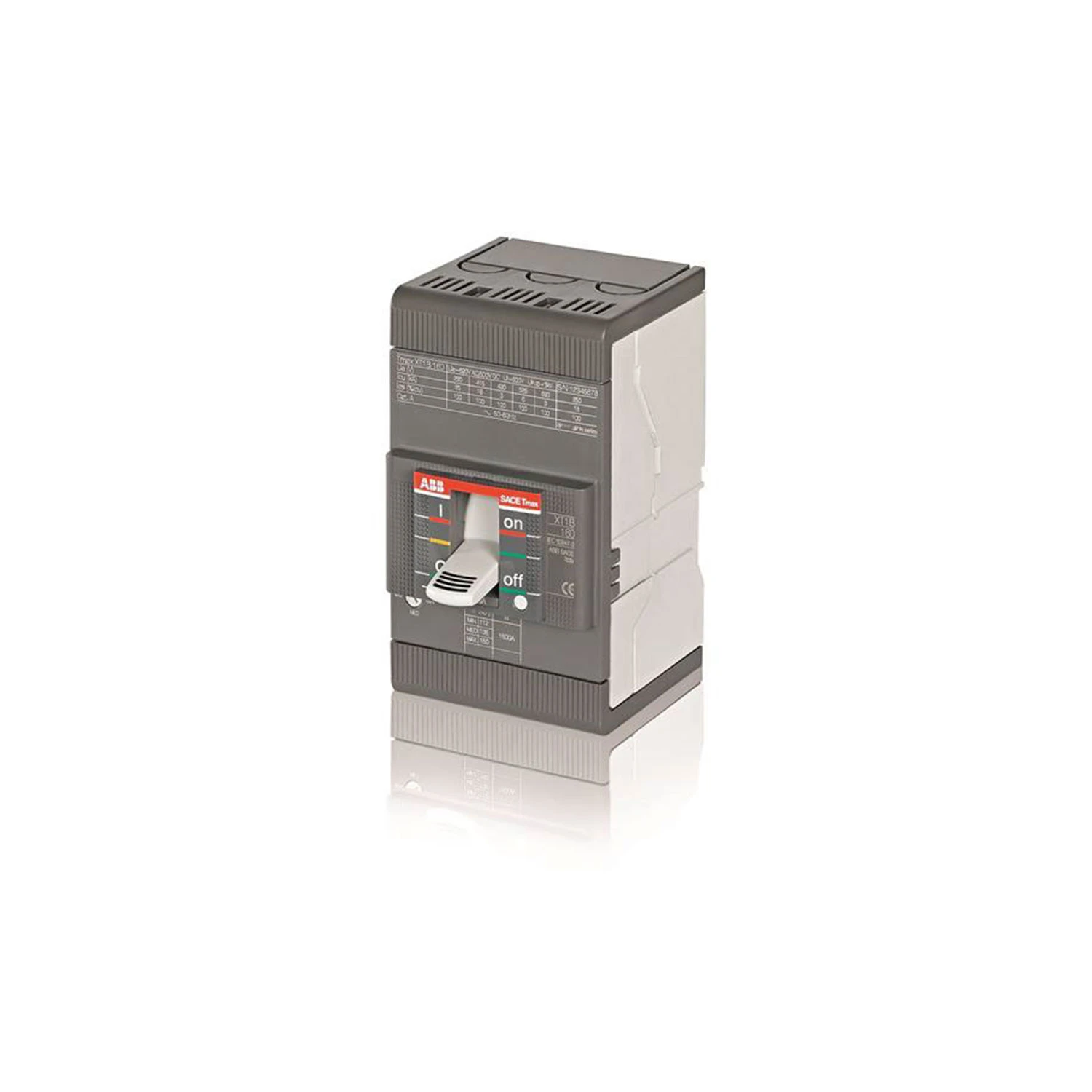

Photo is representative
ABB Tmax XT1B 160 MCCB 100A 3 Pole TMD, 18kA, Front Terminals
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: €162.23
Gross price
€199.55
Mon‐Fri · Subject to order volume Free delivery available 28 day returns
The ABB SACE Tmax XT1B 160 is a three-pole moulded case circuit breaker fitted with a TMD thermomagnetic trip unit rated at 100A. The thermal element is adjustable from 70 to 100A (0.7-1.0 x In) for overload protection, while the magnetic trip is fixed at 1000A for short-circuit protection. It offers an ultimate breaking capacity (Icu) of 18kA at 415V AC, with a service breaking capacity (Ics) of 18kA. Rated operational voltage is 690V AC with an 800V insulation voltage. The breaker is the fixed version with front terminals and is built to IEC 60947-2. It measures 76.2 x 130 x 70mm and weighs approximately 1.1kg. ABB ordering code 1SDA066807R1.
