ABB OS160GD03P fuse switch disconnector 160A 3P

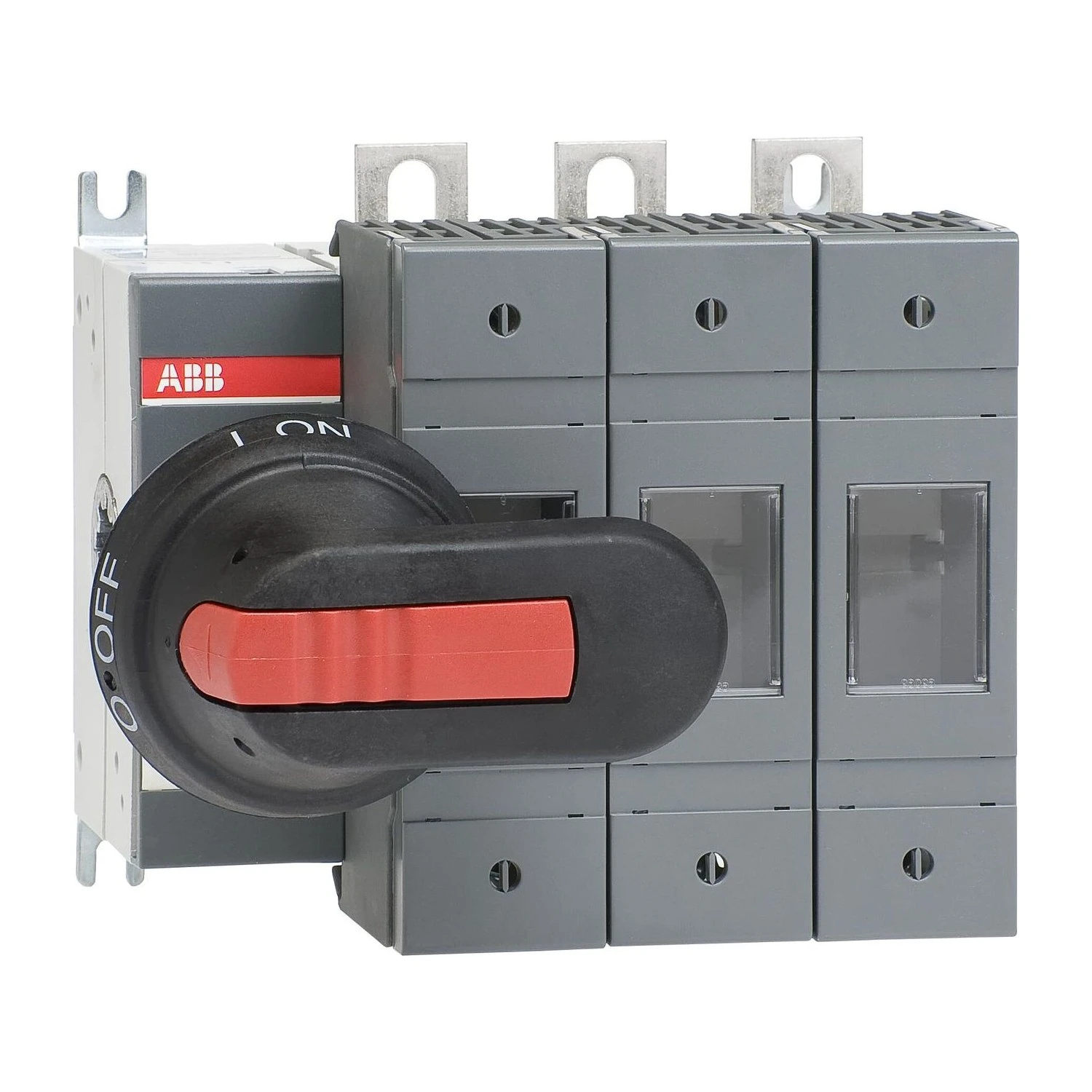

Photo is representative

ABB Fuse Switch Disconnector 160A 3P NH000/NH00 Handle & Shaft - OS160GD03P

Product Information

Stock Code 1SCA115399R1001
GTIN 6417019477718
Stock status: 1 available for delivery

priced individually

Net price: €470.30

Gross price

€578.47

Branch Stock

Monaghan

Stock status: 1 in stock
Open · Closes 5:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Open · Closes 5:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: Out of stock
Open · Closes 5:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

ABB OS160GD03P (1SCA115399R1001) is a 3-pole switch-disconnector fuse rated 160A, taking DIN fuse links in sizes NH000 and NH00. It is front operated with a left-side mechanism and is supplied with a 161mm shaft and OHB65J6 external pistol handle.

  • Rated current: 160A (Ith and Ithe)
  • Rated operational voltage: 690V AC; Ui 1000V, Uimp 8kV
  • Utilisation categories: AC-21A, AC-22A and AC-23A, 160A at 500V and 690V
  • Motor power AC-23A: 75kW at 400/415V, 132kW at 690V
  • Conditional short-circuit current: 100kA at 500V, 80kA at 690V
  • Terminals: 20mm lug terminals, 15–22 Nm
  • Handle: IP65, padlockable in OFF (up to three padlocks), door interlocked in ON
  • Fuse covers: cannot be removed while ON; in OFF the fuse link is isolated at both ends

IP20, base mounting, to IEC 60947-3. Dimensions 147 x 140 x 130mm (W x H x D), 2.035kg.

Specifications

Brand

ABB

Type

OS160GD03P

Product ID

1SCA115399R1001

Poles

3P

Rated Current

160A

Fuse System

DIN NH000 / NH00

Rated Operational Voltage

690V AC

Insulation Voltage Ui

1000V

Impulse Withstand Uimp

8kV

Utilisation Category

AC-21A / AC-22A / AC-23A, 160A at 500V and 690V

Motor Power AC-23A

45kW 230V, 75kW 400/415V, 90kW 500V, 132kW 690V

Conditional Short-Circuit Current

100kA at 500V, 80kA at 690V

Short-Time Withstand Icw 1s

5kA

Operation

Front operated, left-side mechanism

Supplied With

161mm shaft and OHB65J6 pistol handle

Terminals

Lug, 20mm wide, 15–22 Nm

Power Loss

8W per pole

Mounting

Base mounting

IP Rating

IP20 (device)

Standard

IEC 60947-3

Dimensions (W x H x D)

147 x 140 x 130mm

Weight

2.035kg

ABB
