Photo is representative

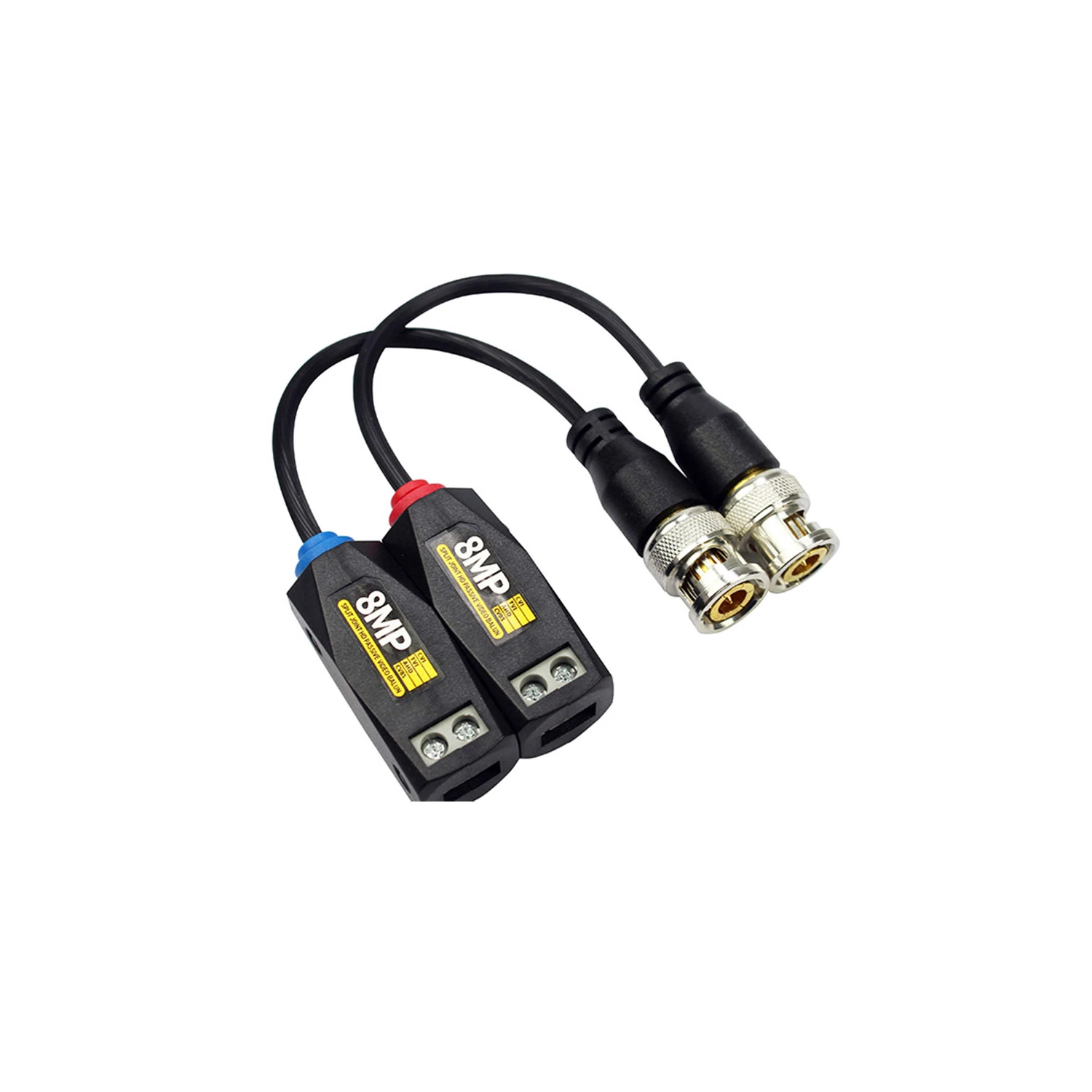

8MP Passive HD Video Balun, Single Channel, HD-CVI/TVI/AHD, CPB-H234C
Product Information
Stock Code
CPB-H234C
GTIN
—
Stock status: Available for delivery
priced individually
Net price: €7.50
Gross price
€9.23
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout
The CPB-H234C is a single channel passive HD video balun that carries an analogue CCTV camera signal over unshielded twisted pair cable instead of coax, and it needs no power supply. It is compatible with HD-CVI, HD-TVI, AHD and CVBS cameras at resolutions from 720P up to 8MP, and supports NTSC, PAL and SECAM video. Transmission over Cat5e or Cat6 reaches up to 250m for 1080P to 5MP CVI, TVI and AHD cameras. Impedance is 75 ohms on the BNC side and 100 ohms on the twisted pair terminal. The housing is ABS plastic and the units are stackable, with an operating range of -10°C to +70°C.
