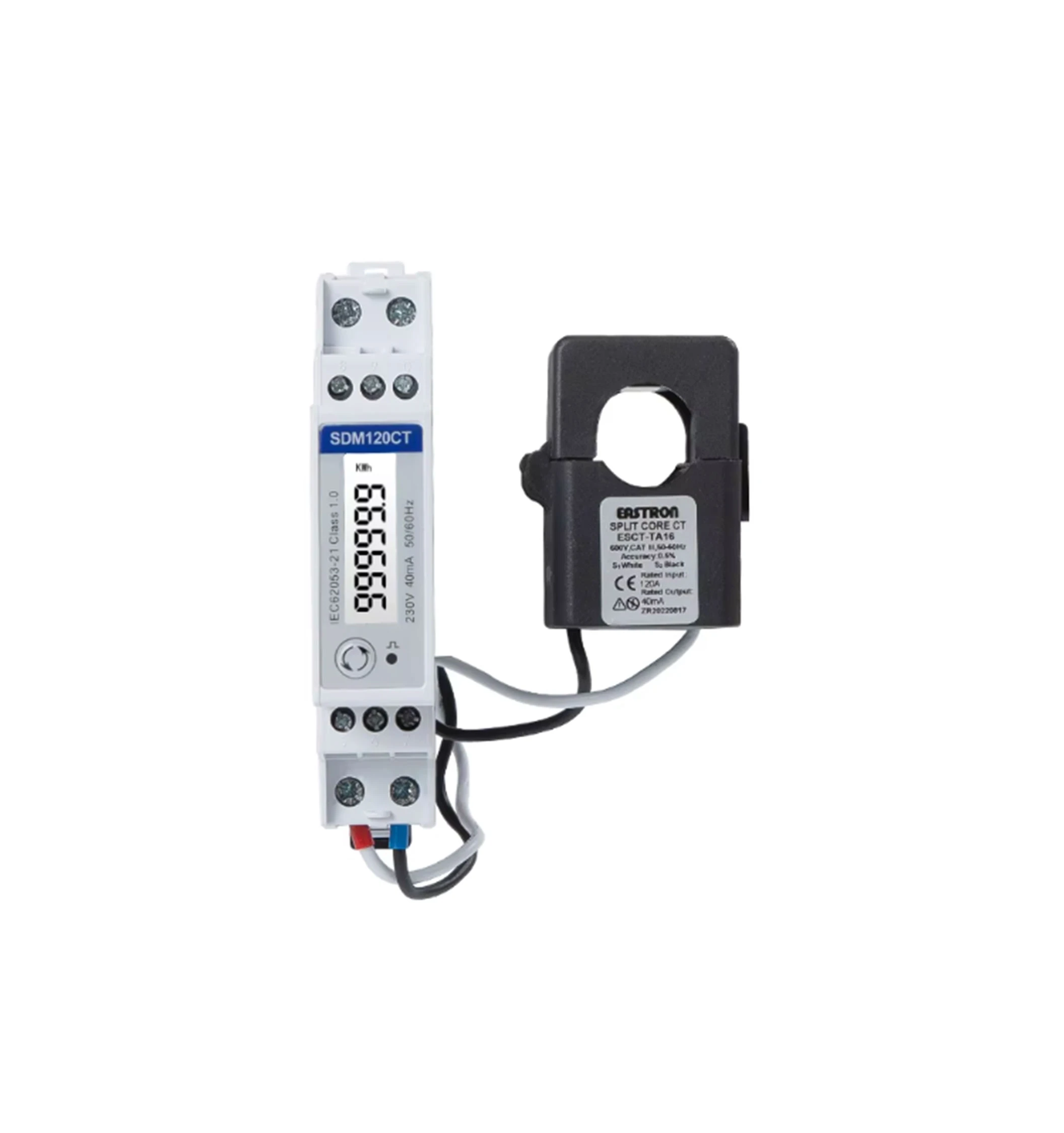

Photo is representative
230V Single Phase CT Energy Meter Kit | Modbus RS485 | MID Class 1
Product Information
Stock Code
SDM120CTM-KIT
GTIN
—
Stock status:
4 available for delivery
priced individually
More arriving soon
Net price: €119.78
Gross price
€147.33
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns
Mon‐Fri · Subject to order volume Free delivery available 28 day returns
A single-phase, two-wire DIN-rail energy meter operated from an external current transformer and supplied as a kit with a CT clamp, for sub-metering and load monitoring where the supply cable cannot pass through the meter terminals.
- Nominal voltage 120V or 230V AC at 50/60Hz, operating from 80-120% of Un
- Accuracy Class 1 for active energy and Class 2 for reactive energy, to IEC 62053-21 and EN 50470-1⁄3
- MID B+D certified under directive 2014/32/EU, so it is suitable for billing as well as monitoring
- Bi-directional measurement of kW and kWh, with active, reactive and apparent power, voltage, current, power factor, demand and frequency
- Modbus RTU over RS485 at 1200-19200 baud, plus two pulse outputs, one configurable and one fixed at 1000 imp/kWh
The housing is a 1-module 18mm DIN-rail case (118 x 18 x 64mm) with a backlit LCD, IP51 indoor protection, protective class II insulation, CAT III installation category and an operating range of -25°C to +55°C.
